Motor contactor CES 300.22-230V-50/60Hz 004646572
Specifications
- ETI Code:
- 004646572
- Description:
- CES 300.22-230V-50/60Hz
- Class name:
- Motor contactor
- Rated operation current Ie at AC1 (A):
- 320
- Rated operation current Ie at AC3, 400 V (A):
- 300
- Rated operational voltage AC (V):
- 690
- Rated AC control circuit voltage Uc (V):
- 230
- Rated operation power at AC3 (kW):
- 160
- Number of poles:
- 3
- Number of auxiliary NO contacts:
- 2
- Number of auxiliary NC contacts:
- 2
- Function:
- Motor contactor
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 145 mm
- logis_net_height
- 198 mm
- logis_net_depth
- 201 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895749318
- Basic packaging weight
- 6.2 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838895749325
- Transport packaging weight
- 26.8 kg
- Pallet quantity
- 76

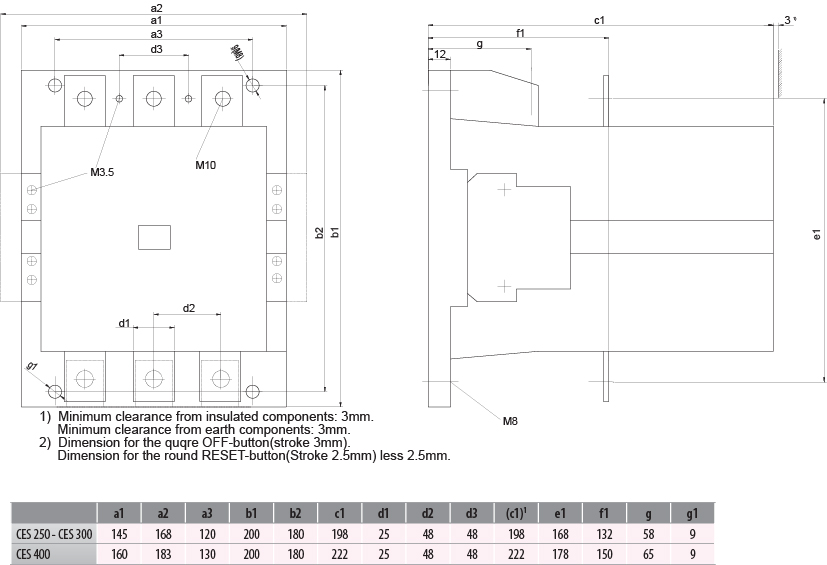

Images & Diagrams
