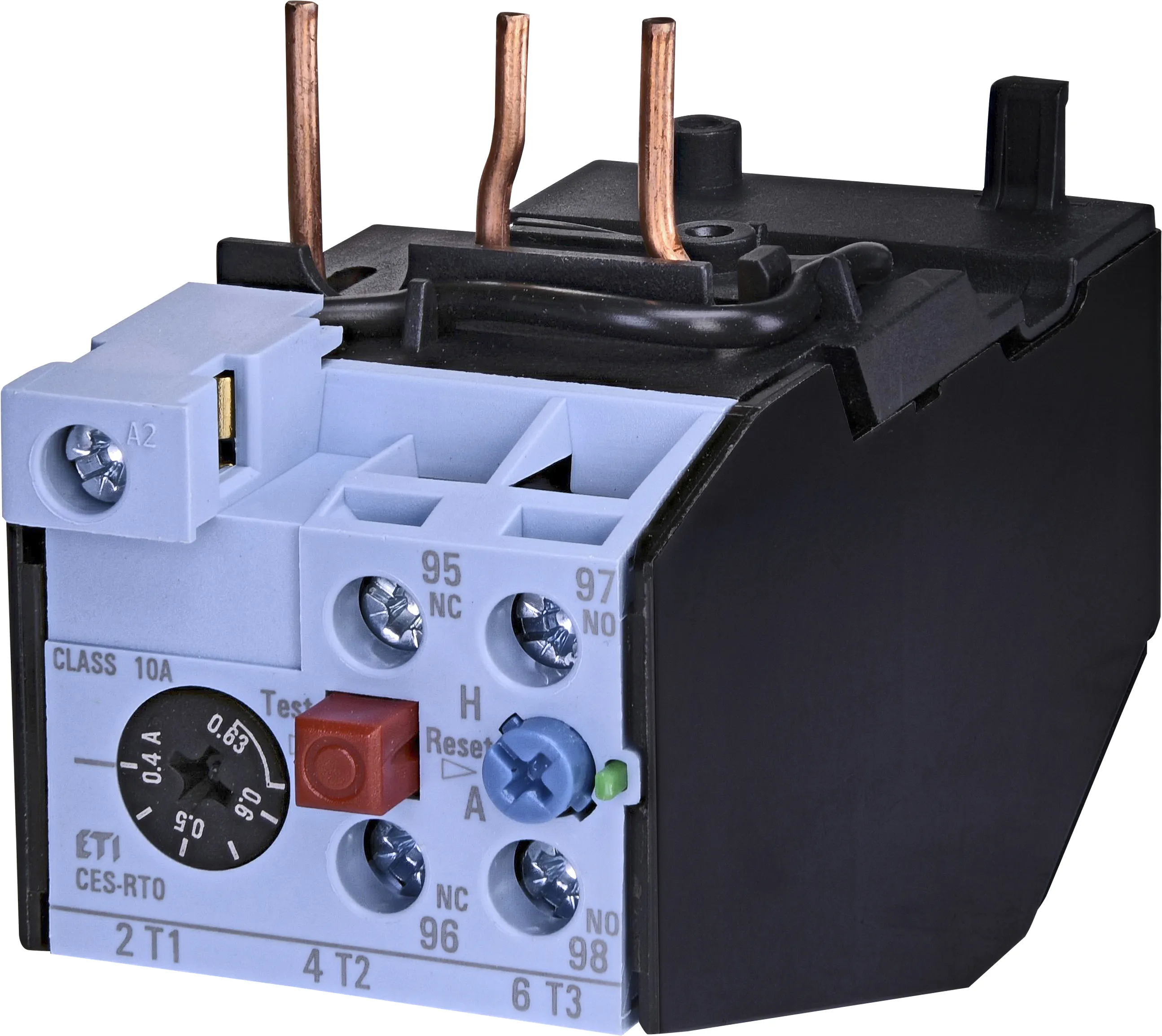

Thermal overload relay CES-RT0-0,63 004646588

Specifications

ETI Code:
004646588
Description:
CES-RT0-0,63
Class name:
Thermal overload relay
Function accessories:
Overload relay
Current setting range (A):
0.4A/0.63A

Documents

Product

Net weight of the product
0.14  kg
Customs tariff
85364900
logis_net_width
45  mm
logis_net_height
74  mm
logis_net_depth
95  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895749561
Basic packaging weight
0.14  kg

Transport packaging

Transport packaging quantity
42
EAN code for a transport packaging
3838895749578
Transport packaging weight
7.8  kg
Pallet quantity
840

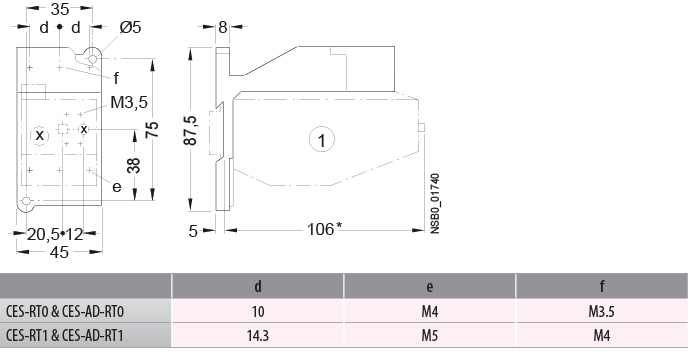

Images & Diagrams

004646588 Thermal overload relay, CES-RT0-0,63 ETICON Motor contactor CES Motor contactor CES Overload relay Thermal overload relays CES-RT0 Contactors ETICON Motor contactor CES, overload relays and accessories Overload relays Function Accessories Tripping characteristic Class 10 For use with CES 6-CES 18 Current setting range 0,4-0,63A Function accessories Overload relay Catalogue Group Accessories CES
