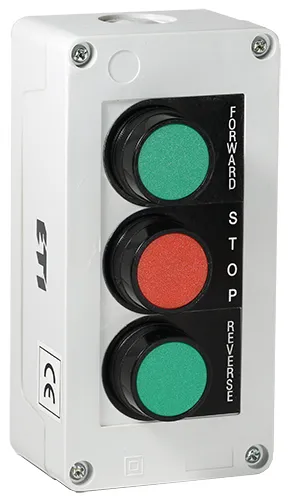

Push-button/signal unit JDB2A1B2 004770373 Obsolete
This product is obsolete and has been replaced with ESE3-V6.
Compare products
Specifications
- ETI Code:
- 004770373
- Description:
- *JDB2A1B2
- Class name:
- Push-button/signal unit
- IP rating:
- IP65
- Function:
- Push button stations
- Catalogue Group:
- Push button stations and enclosures H-line
Documents
Logistic Data
Product
- Net weight of the product
- 0.267 kg
- Customs tariff
- 85389099
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895383642
- Basic packaging weight
- 0.244 kg
Transport packaging
- Transport packaging quantity
- 22
- EAN code for a transport packaging
- 3838895383659
- Transport packaging weight
- 5.868 kg
- Pallet quantity
- 1474
ETIM Clasification
- Classification
- EC000225
- Class name
- Control circuit devices combination in enclosure
- Number of command positions
- 3
- Number of push buttons
- 3
- Rated control supply voltage AC 50 Hz
- 12…230V
- Rated control supply voltage DC
- 12…220V
- Colour housing cover
- Grey
- Housing material
- Plastic
- Number of contacts as normally open contact
- 2
- Number of contacts as normally closed contact
- 1
- Degree of protection (IP)
- IP65
*JDB2A1B2
