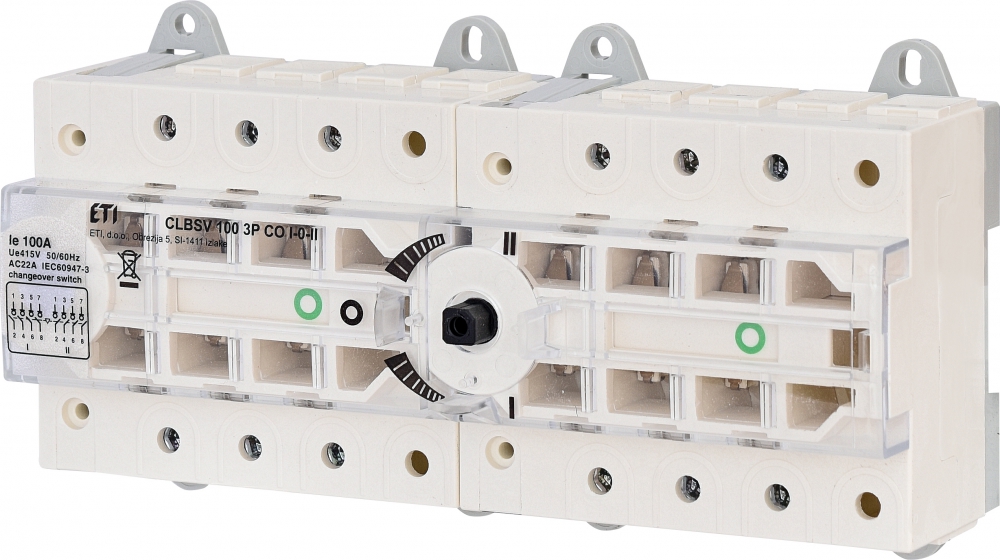

Changeover switch CLBSV 100 3P CO I-0-II 004661891
Specifications
- ETI Code:
- 004661891
- Description:
- CLBSV 100 3P CO I-0-II
- Class name:
- Changeover switch
- Function:
- I-0-II
- Rated current (A):
- 100
- Type:
- DIN rail mounting
- No. Of poles:
- 3
- Catalogue Group:
- Compact load break switch CLBSV
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 1.36 kg
- Customs tariff
- 85365080
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895824138
- Transport packaging weight
- 1.36 kg
- Pallet quantity
- 250
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Number of knife blade fuse holders
- 3
- Rated current
- 100
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Max. rated operation voltage Ue AC
- 800V
- Rated permanent current Iu
- 100A
- Rated operation power at AC-23, 400 V
- 30kW
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- Yes
- Type of control element
- Short thumb-grip
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
