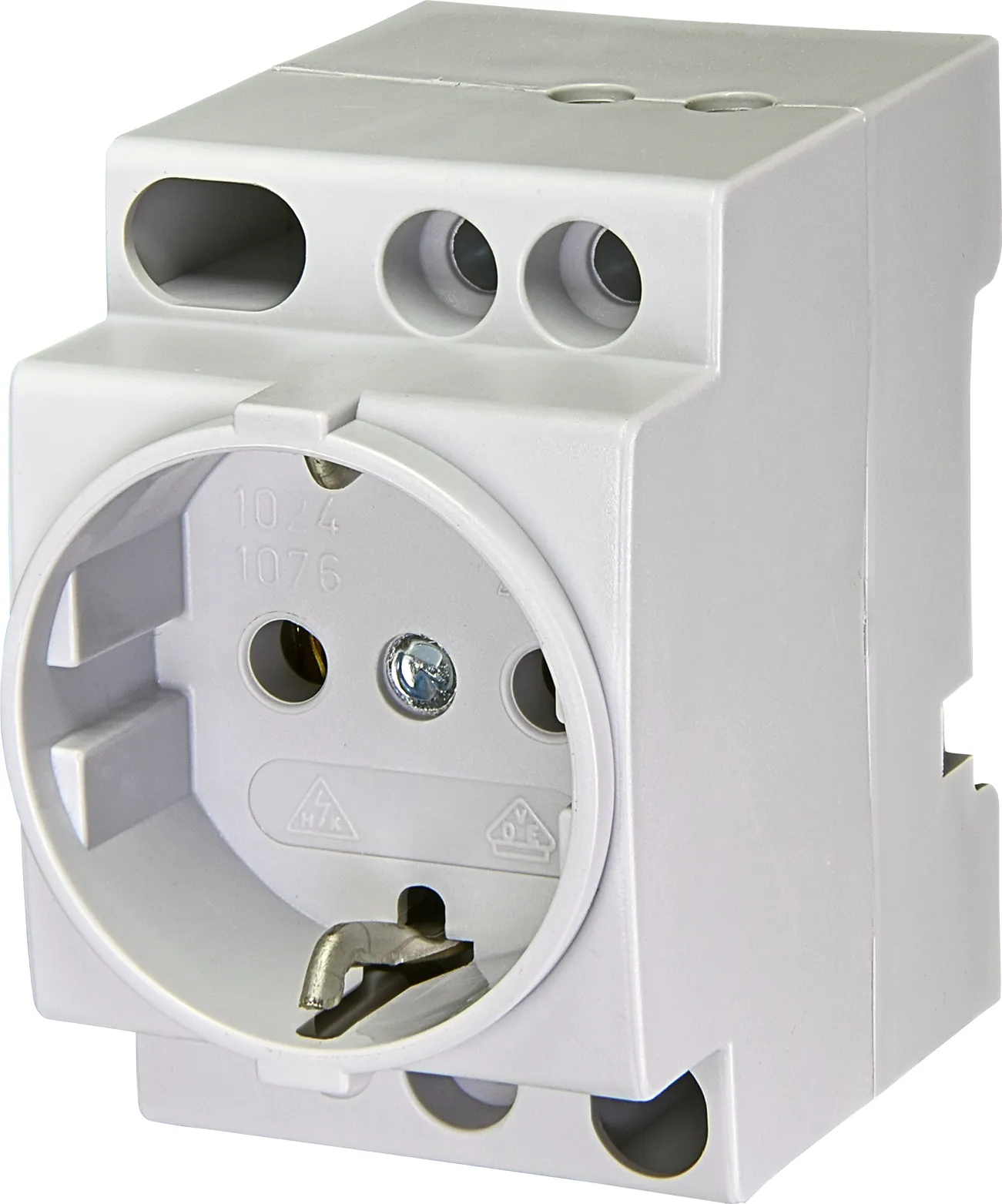

Socket T-2P+Z schuko 002414021 Obsolete
This product is obsolete and has been replaced with t-2P+Z Schuko P.
Compare products
Specifications
- ETI Code:
- 002414021
- Description:
- *T-2P+Z schuko
- Class name:
- Socket
- Catalogue Group:
- DIN sockets
- Catalogue subgroup:
- Schuko
- Function:
- DIN socket
- Rated current (A):
- 16 AC / 10 DC
Documents
Logistic Data
Product
- Customs tariff
- 85366990
- logis_net_width
- 45 mm
- logis_net_height
- 72 mm
- logis_net_depth
- 65 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 5904722987067
- Basic packaging weight
- 0.116 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895500063
- Transport packaging weight
- 1.73 kg
- Pallet quantity
- 6000
ETIM Clasification
- Classification
- EC000125
- Class name
- Socket outlet
- Number of units
- 1
- Colour
- Grey
- Mounting method
- Other
- Type of fastening
- Snap mounting (engagement)
- Material
- Plastic
- Halogen free
- Yes
- Nominal current
- 16A
- Suitable for degree of protection (IP)
- IP20
- Device width
- 45mm
- Device height
- 70mm
- Device depth
- 66mm

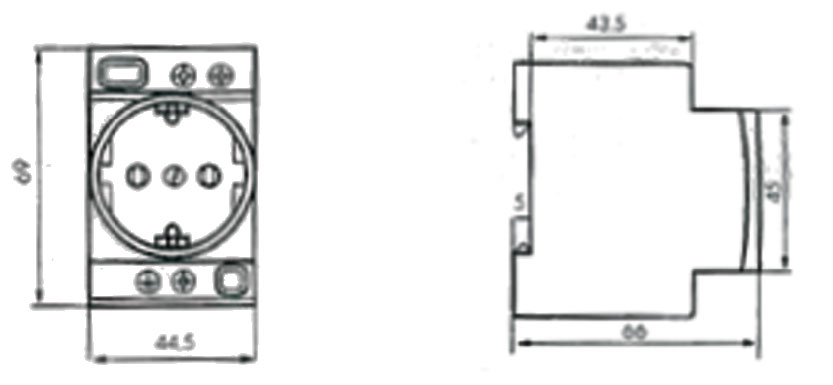

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
*T-2P+Z schuko
