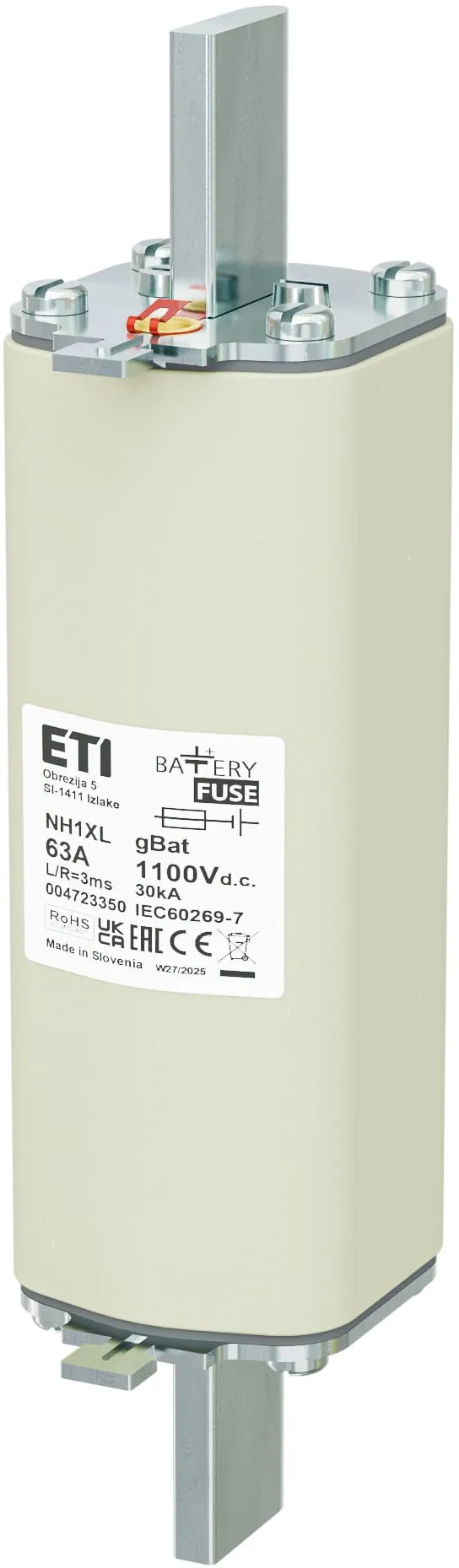

Fuse link NH1XL gBat 63A/1100V DC 004723350
Specifications
- ETI Code:
- 004723350
- Description:
- NH1XL gBat 63A/1100V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 63A
- Type:
- NH
- Size:
- NH1XL
- Characteristics:
- gBat
- Rated DC voltage (V):
- 1100V
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 10kA
- Operating joule integral (A2s):
- 3520
- L/R (ms):
- 2ms
- Prearcing joule integral (A2s):
- 2720
- Application:
- Battery protection
- Power dissipation (W):
- 15W
- Power dissipation (0,7x In) (W):
- 6.2W
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- Net weight of the product
- 750 g
- Customs tariff
- 85351000
- logis_net_width
- 46 mm
- logis_net_height
- 198 mm
- logis_net_depth
- 63 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895897958
- Basic packaging weight
- 0.815 kg
Transport packaging
- Transport packaging quantity
- 16
- EAN code for a transport packaging
- 3838895897965
- Transport packaging weight
- 13.4 kg
- Pallet quantity
- 832
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 63
- Rated voltage
- 1100
- Voltage type
- DC
- Rated switching capacity
- 10
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic

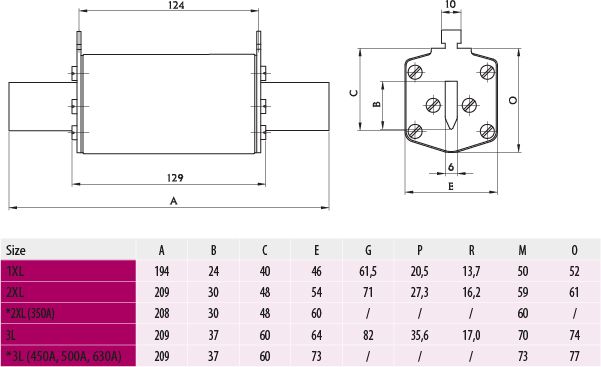

Images & Diagrams
Tags
Accessories 4
>
>
0
NH1XL gBat 63A/1100V DC
