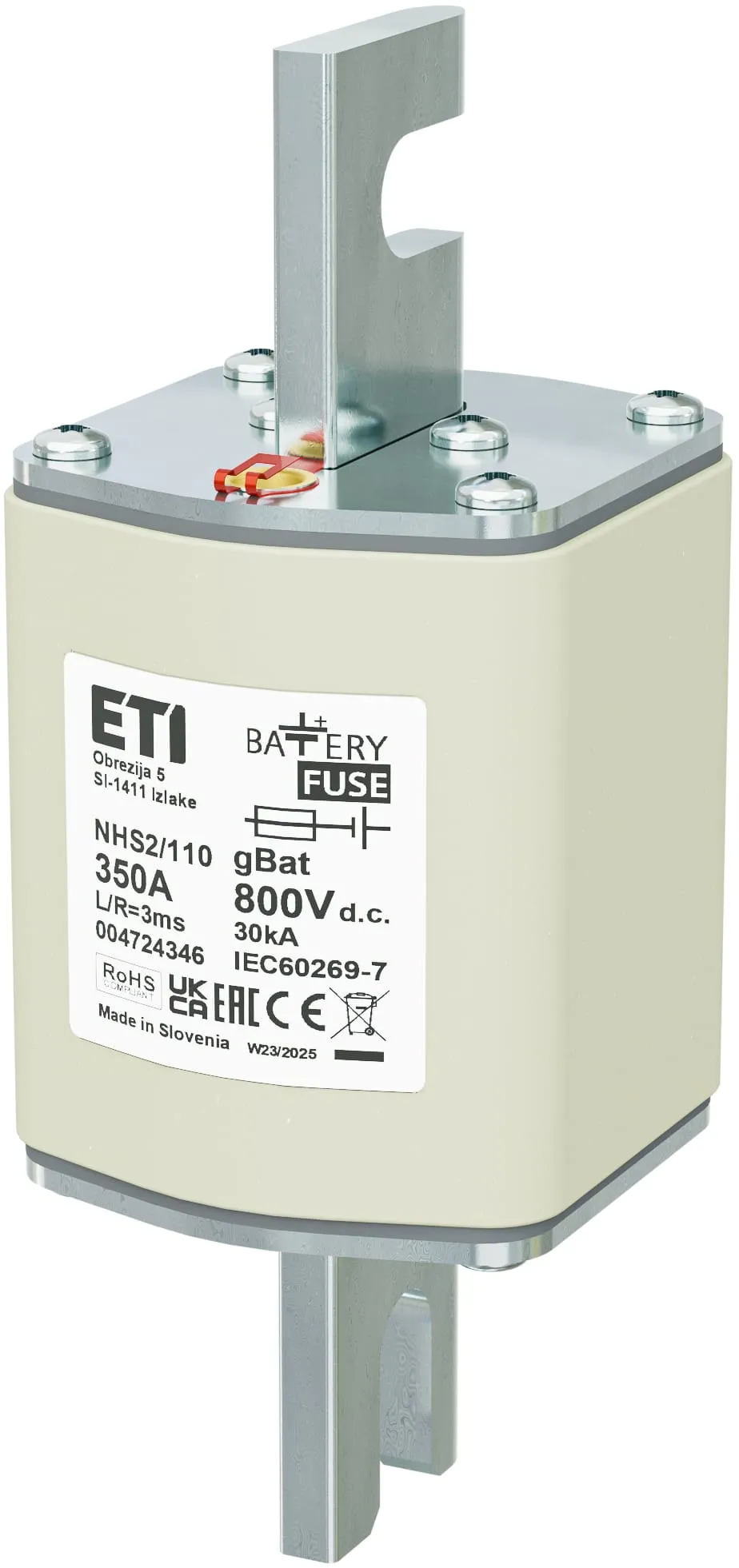

Fuse link NHS2/110 gBat 350A/800V DC 004724346
Specifications
- ETI Code:
- 004724346
- Description:
- NHS2/110 gBat 350A/800V DC
- Class name:
- Fuse link
- Rated current (A):
- 350A
- Type:
- NH-S
- Size:
- NH2
- Characteristics:
- gBat
- Rated DC voltage (V):
- 800V
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 30kA
- Operating joule integral (A2s):
- 166040
- L/R (ms):
- 3ms
- Prearcing joule integral (A2s):
- 28000
- Application:
- Battery protection
- Power dissipation (W):
- 67W
- Power dissipation (0,7x In) (W):
- 30W
- Standards:
- IEC 60269-7
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895760528
- Net weight of the product
- 700 g
- Customs tariff
- 85361090
- logis_net_width
- 54 mm
- logis_net_height
- 139 mm
- logis_net_depth
- 59 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895708353
- Basic packaging weight
- 2.08 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895708360
- Transport packaging weight
- 17.95 kg
- Pallet quantity
- 576
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 350
- Rated voltage
- 800
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
NHS2/110 gBat 350A/800V DC
