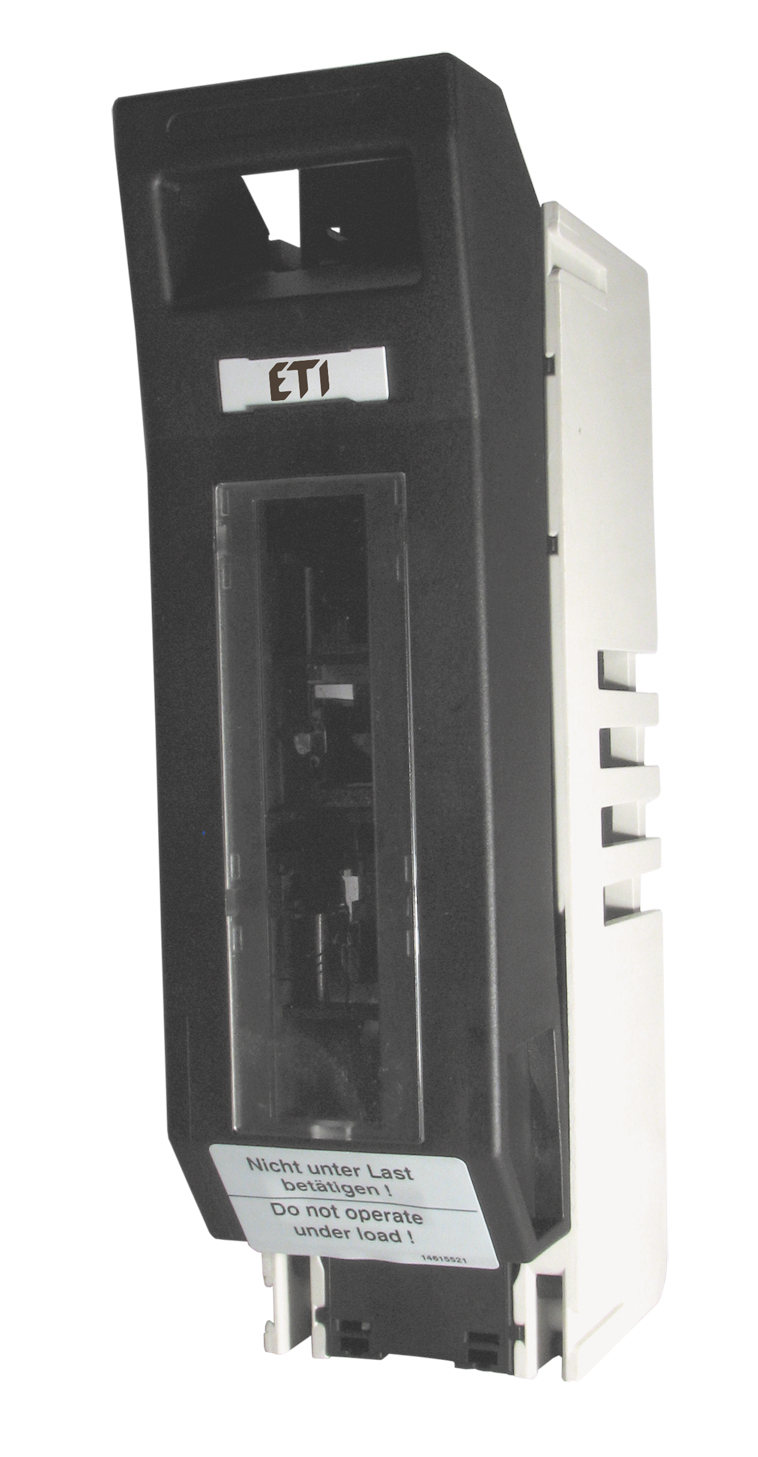

Fuse switch disconnector TL1-1/9/1000V/PV 004122038

Specifications

ETI Code:
004122038
Description:
TL1-1/9/1000V/PV
Class name:
Fuse switch disconnector
Rated current (A):
160
Size:
1
Rated DC voltage (V):
1000
Product group:
LV-fuse disconnector
Connection:
M10

Documents

Product

EAN code for a single product

Net weight of the product
1.042  kg
Customs tariff
85365080
logis_net_width
69  mm
logis_net_height
230  mm
logis_net_depth
119  mm

Level 1 Packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895601487
Basic packaging weight
1.04  kg

Level 2 Packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838400068927
Transport packaging weight
1.07  kg
Classification
EC001040
Class name
Fuse switch disconnector
Construction size
1
Rated voltage DC
1000
Rated current
160
Version as main switch
Yes
Rated permanent current Iu
160A
Suitable for fuses
NH1
Number of poles
1
Type of electrical connection of main circuit
Screw connection
Type of control element
Cover grip
Degree of protection (IP), front side
IP20
ETIM Classification – Version 7.0
