Fuse disconnector PCF 10 DC 1p LED 1000V 002550211

Specifications

ETI Code:
002550211
Description:
*PCF 10 DC 1p LED 1000V
Class name:
Fuse disconnector
Rated current (A):
25
No. Of poles:
1
Rated DC voltage (V):
1000
Indicator:
LED
Product group:
LV-fuse disconnector
Connection:
10mm2
Catalogue Group:
LV-fuse disconnector

Documents

Product

EAN code for a single product
3838895716099
Net weight of the product
0.06  kg
Customs tariff
85389099

Level 1 Packaging

Basic packaging quantity
12
EAN code for a basic packaging
3838895489573
Basic packaging weight
0.72  kg

Level 2 Packaging

Transport packaging quantity
108
EAN code for a transport packaging
3838895618232
Transport packaging weight
6.5  kg
Pallet quantity
5616
Classification
EC001040
Class name
Fuse switch disconnector
Rated current
25
Type of fuse status indicator
LED
Rated voltage DC
1000
Number of knife blade fuse holders
1
Rated permanent current Iu
25A
Suitable for fuses
Other
Number of poles
1
With error protection
Yes
Type of electrical connection of main circuit
Frame clamp
Suitable for busbar mounting
Yes
Type of control element
Cover grip
Degree of protection (IP), front side
IP20
ETIM Classification – Version 7.0

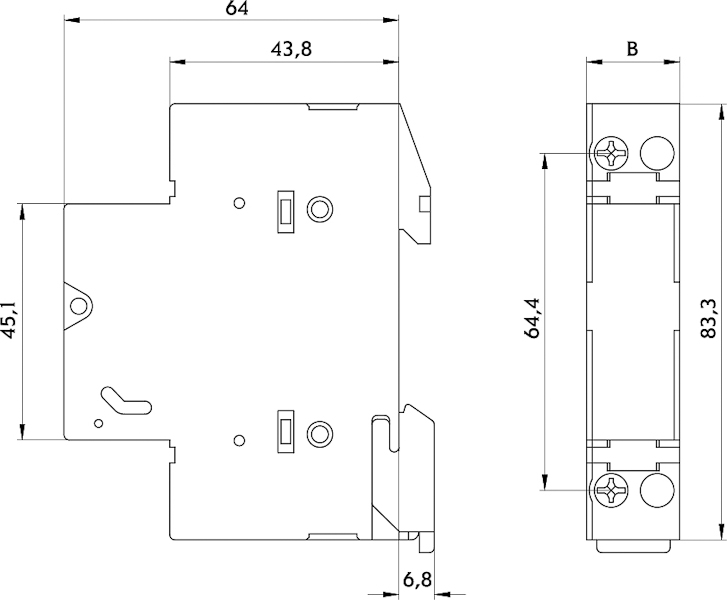

Images & Diagrams
