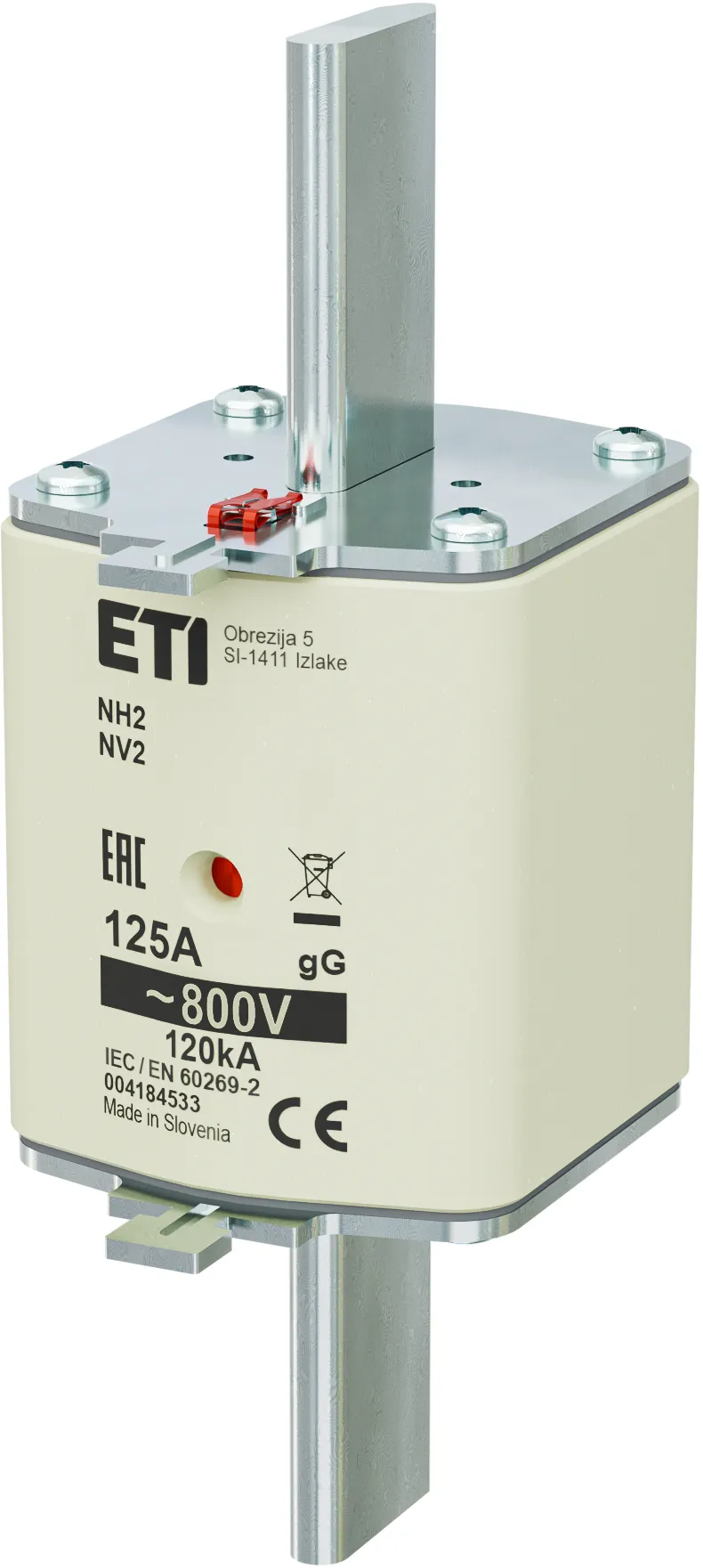

Fuse link NH2 gG 125A/800V 004184533
Specifications
- ETI Code:
- 004184533
- Description:
- NH2 gG 125A/800V
- Class name:
- Fuse link
- Rated current (A):
- 125A
- Type:
- NH
- Size:
- NH2
- Characteristics:
- gG
- Rated AC voltage (V):
- 800V
- Indicator:
- Combination fuse status indicator
- Breaking capacity AC (kA):
- 120kA
- Operating joule integral (A2s):
- 260000
- Prearcing joule integral (A2s):
- 27000
- Application:
- For cable protection on 800V a.c. system voltage
- Power dissipation (W):
- 9.7W
- Power dissipation (0,7x In) (W):
- 4.4W
- Standards:
- IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400105202
- Net weight of the product
- 580 g
- Customs tariff
- 85361090
- logis_net_width
- 54 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838400105097
- Basic packaging weight
- 1.33 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838400105103
- Transport packaging weight
- 7 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 125
- Rated voltage
- 800
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
