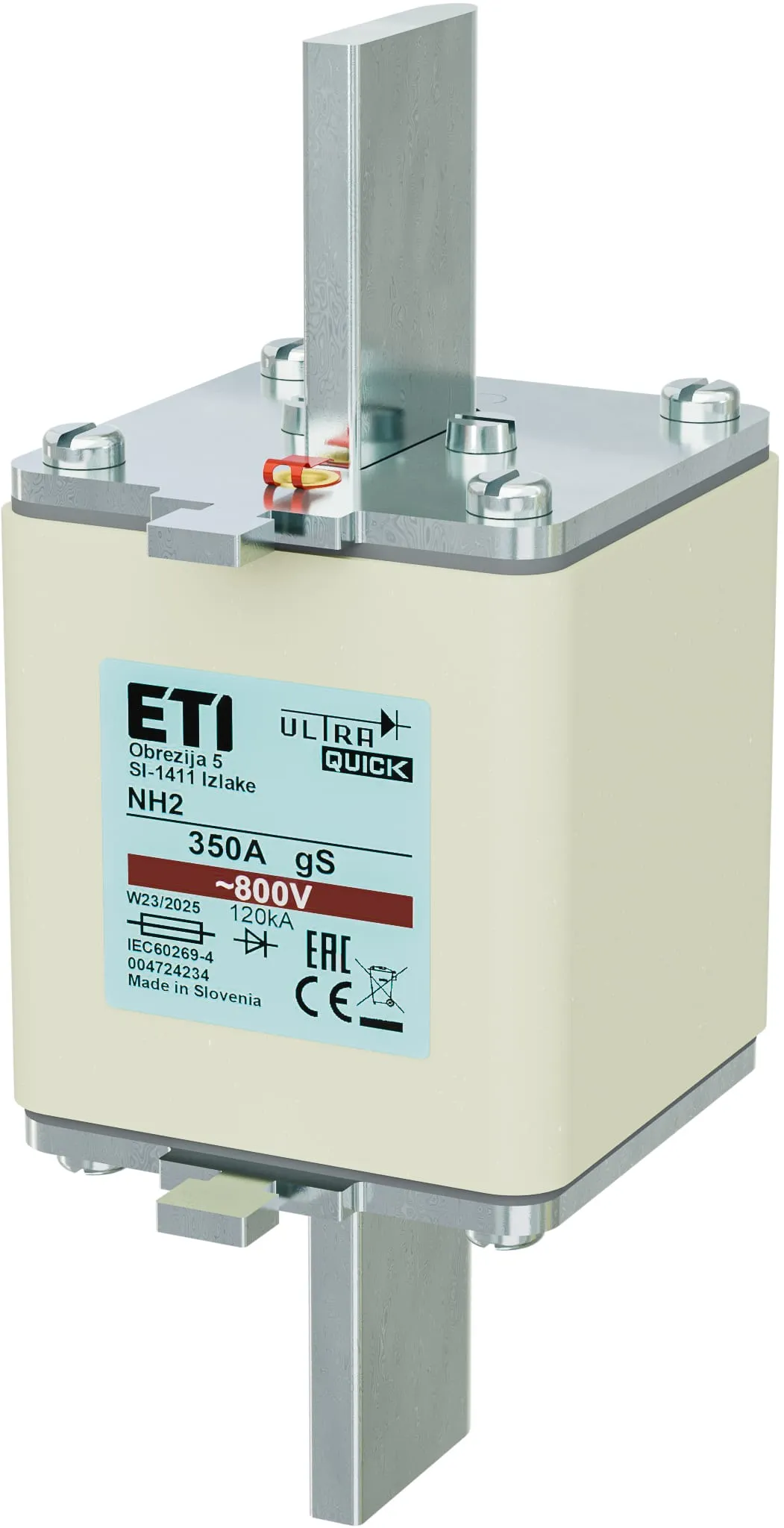

Fuse link NH2 gS 350A/800V 004724234
Specifications
- ETI Code:
- 004724234
- Description:
- NH2 gS 350A/800V
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 350A
- Type:
- NH
- Size:
- NH2
- Characteristics:
- gS
- Rated AC voltage (V):
- 800V
- Indicator:
- Top fuse status indicator
- Breaking capacity AC (kA):
- 120kA
- Operating joule integral (A2s):
- 825000
- Prearcing joule integral (A2s):
- 70000
- Application:
- Protection of inverters
- Power dissipation (W):
- 25W
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895837589
- Net weight of the product
- 880 g
- Customs tariff
- 85361090
- logis_net_width
- 60 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895837596
- Basic packaging weight
- 2.08 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895837602
- Transport packaging weight
- 10.95 kg
- Pallet quantity
- 360
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 350
- Rated voltage
- 800
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
