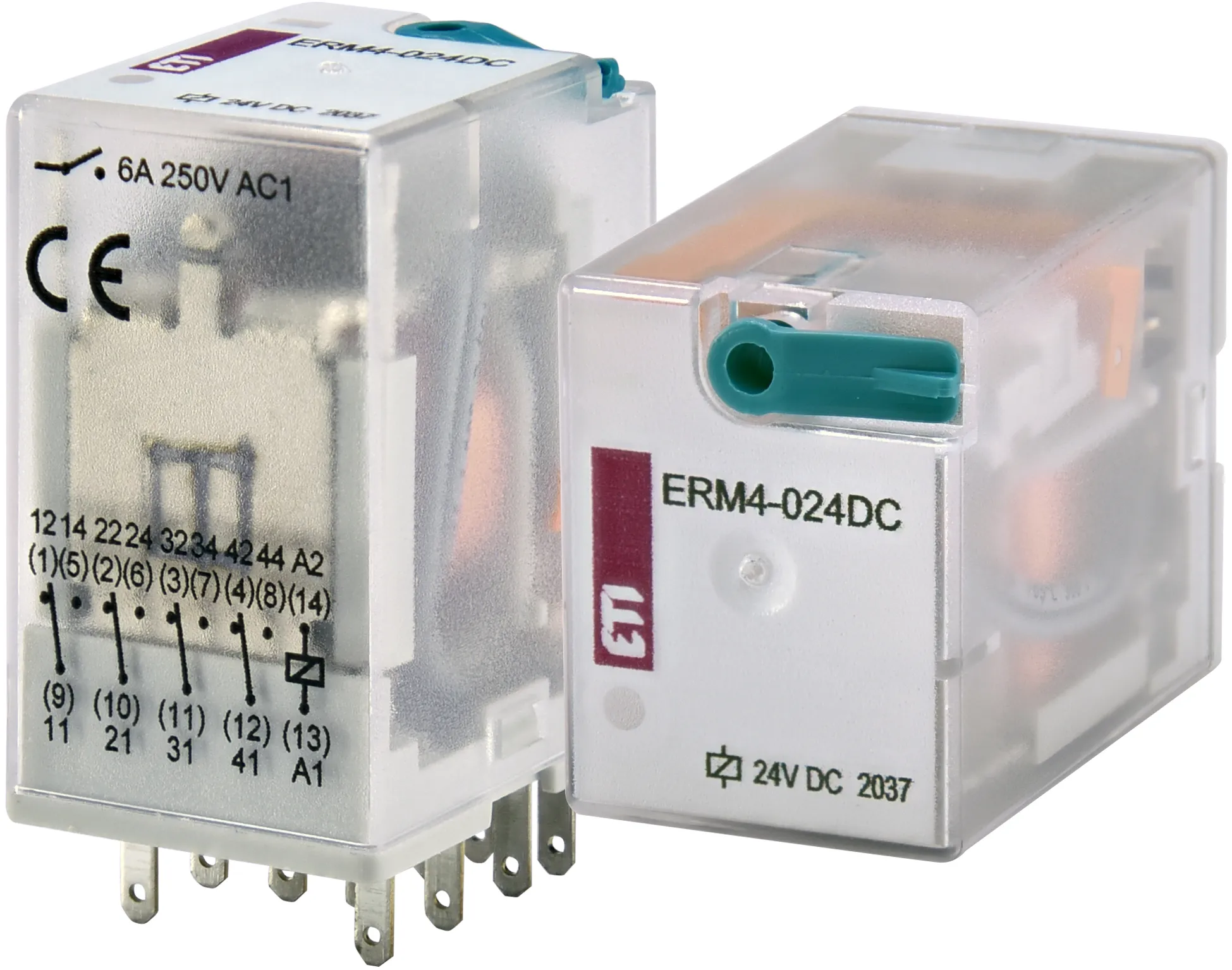

Relay ERM4-024DC 002473006
Specifications
- ETI Code:
- 002473006
- Description:
- ERM4-024DC
- Class name:
- Relay
- Rated current (A):
- 6A
- Voltage type:
- DC
- Uc rated coil voltage (V):
- 24V
- Number of CO contacts:
- 4
- Switching voltage (V):
- 250V
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400013668
- Net weight of the product
- 0.033 kg
- Customs tariff
- 85364900
- logis_net_width
- 21 mm
- logis_net_height
- 28 mm
- logis_net_depth
- 42 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895680352
- Basic packaging weight
- 0.33 kg
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3838895680369
- Transport packaging weight
- 3.4 kg
- Pallet quantity
- 14700
ETIM Clasification
- Classification
- EC001437
- Class name
- Switching relay
- Type of electric connection
- Plug-in connection
- Nominal current
- 6A
- Rated control supply voltage DC
- 24…24V
- Voltage type for actuating
- DC
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 4
- Complete with socket
- No
- Degree of protection (IP)
- IP40
- Width
- 21,2mm
- Height
- 27,5mm
- Depth
- 35,6mm
