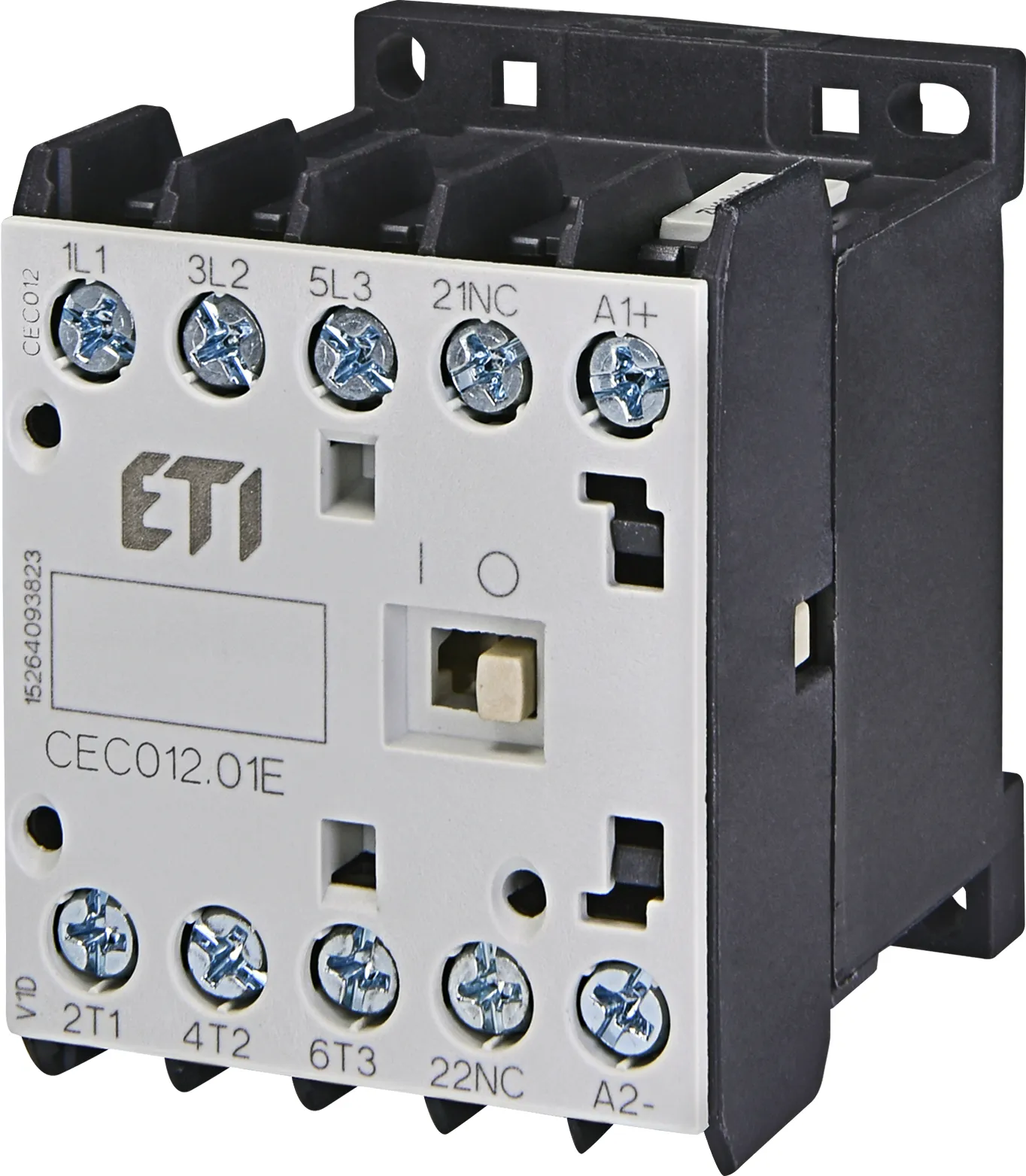

Miniature motor contactor CEC012.01-230V-50/60Hz 004641084
Specifications
- ETI Code:
- 004641084
- Description:
- CEC012.01-230V-50/60Hz
- Class name:
- Miniature motor contactor
- Rated operation current Ie at AC1 (A):
- 22A
- Rated operation current Ie at AC3, 400 V (A):
- 12A
- Rated operational voltage AC (V):
- 690V
- Rated AC control circuit voltage Uc (V):
- 230V
- Number of NO contacts:
- 3
- Number of auxiliary NC contacts:
- 1
- Function:
- Miniature contactors
Documents
Logistic Data
Product
- Net weight of the product
- 0.18 kg
- Customs tariff
- 85364900
- logis_net_width
- 46 mm
- logis_net_height
- 58 mm
- logis_net_depth
- 52 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 7890355552476
- Transport packaging weight
- 0.194 kg
- Pallet quantity
- 4000
ETIM Clasification
- Classification
- EC000066
- Class name
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 230…230V
- Rated control supply voltage AC 60 Hz
- 230…230V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-1, 400 V
- 22A
- Rated operation current Ie at AC-3, 400 V
- 13,7A
- Rated operation power at AC-3, 400 V
- 5,5kW
- Number of auxiliary contacts as normally closed contact
- 1
- Type of electrical connection of main circuit
- Frame clamp
- Number of normally open contacts as main contact
- 3
