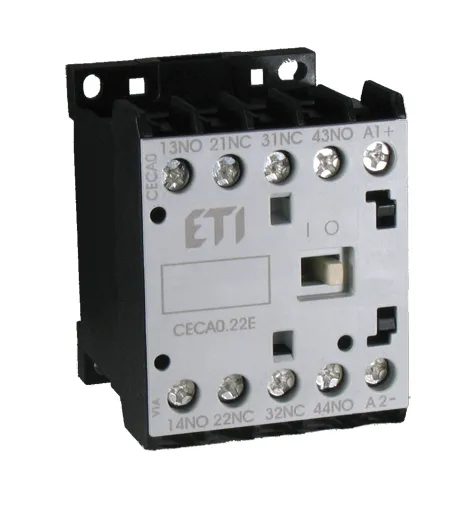

Aux.contactor CECA0.04-24V-50/60Hz 004641164 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004641164
- Description:
- *CECA0.04-24V-50/60Hz
- Class name:
- Aux.contactor
- Rated operation current Ie at AC1 (A):
- 10
- Rated operational voltage AC (V):
- 230
- Rated AC control circuit voltage Uc (V):
- 24V
- Rated Frequency (Hz):
- 50/60HZ
- Number of auxiliary NC contacts:
- 4
- Function:
- Auxiliary contactors
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 46 mm
- logis_net_height
- 58 mm
- logis_net_depth
- 52 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 7890355552513
- Transport packaging weight
- 0.194 kg
- Pallet quantity
- 4000
ETIM Clasification
- Classification
- EC000196
- Class name
- Contactor relay
- Rated control supply voltage AC 50 Hz
- 24…24V
- Rated control supply voltage AC 60 Hz
- 24…24V
- Voltage type for actuating
- AC
- Rated operation current Ie, 400 V
- 10A
- Connection type auxiliary circuit
- Screw connection
- Number of auxiliary contacts as normally closed contact
- 4
