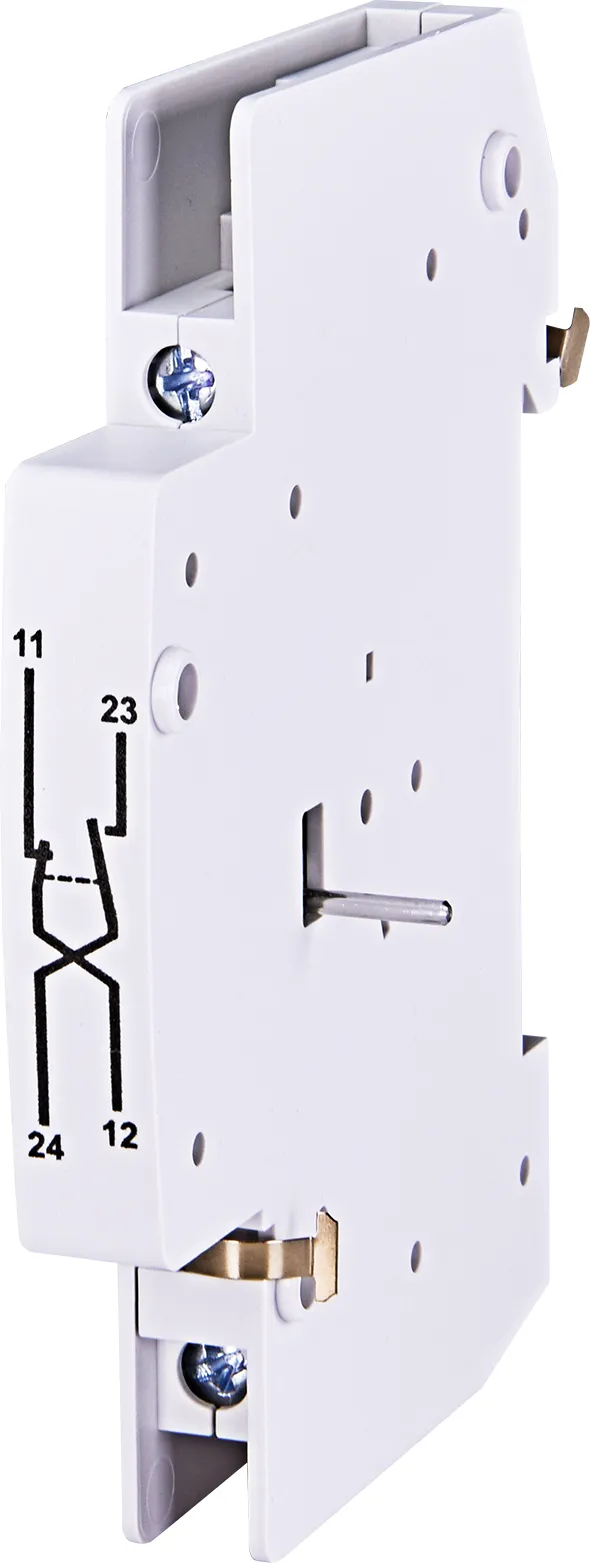

Auxiliary switch PS ETIMAT 10 MD 002159031
Specifications
- ETI Code:
- 002159031
- Description:
- PS ETIMAT 10 MD
- Class name:
- Auxiliary switch
- function:
- Auxiliary switch
- Rated Frequency (Hz):
- 50Hz/60Hz
- Rated cross section:
- 1mm²-4mm²
- Number of NC contacts:
- 1
- Number of NO contacts:
- 1
- Standards:
- EN 62019
- To use with:
- ETIMAT 6
Documents
Logistic Data
Product
- Net weight of the product
- 0.05 kg
- Customs tariff
- 85365080
- logis_net_width
- 17 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895307020
- Basic packaging weight
- 0.058 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895307037
- Transport packaging weight
- 0.766 kg
- Pallet quantity
- 2880
ETIM Clasification
- Classification
- EC001286
- Class name
- Auxiliary device for distribution board devices
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Auxiliary switch
- Number of contacts as normally open contact
- 1
- Number of contacts as normally closed contact
- 1
- Rated switch current
- 6A
- Rated voltage
- 230V
- Voltage type for actuating
- AC
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 63A

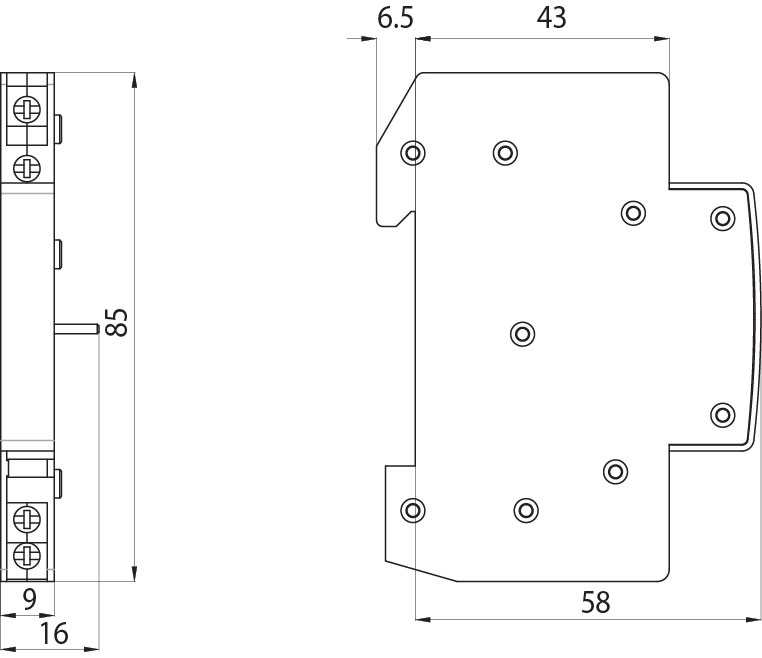

Images & Diagrams
