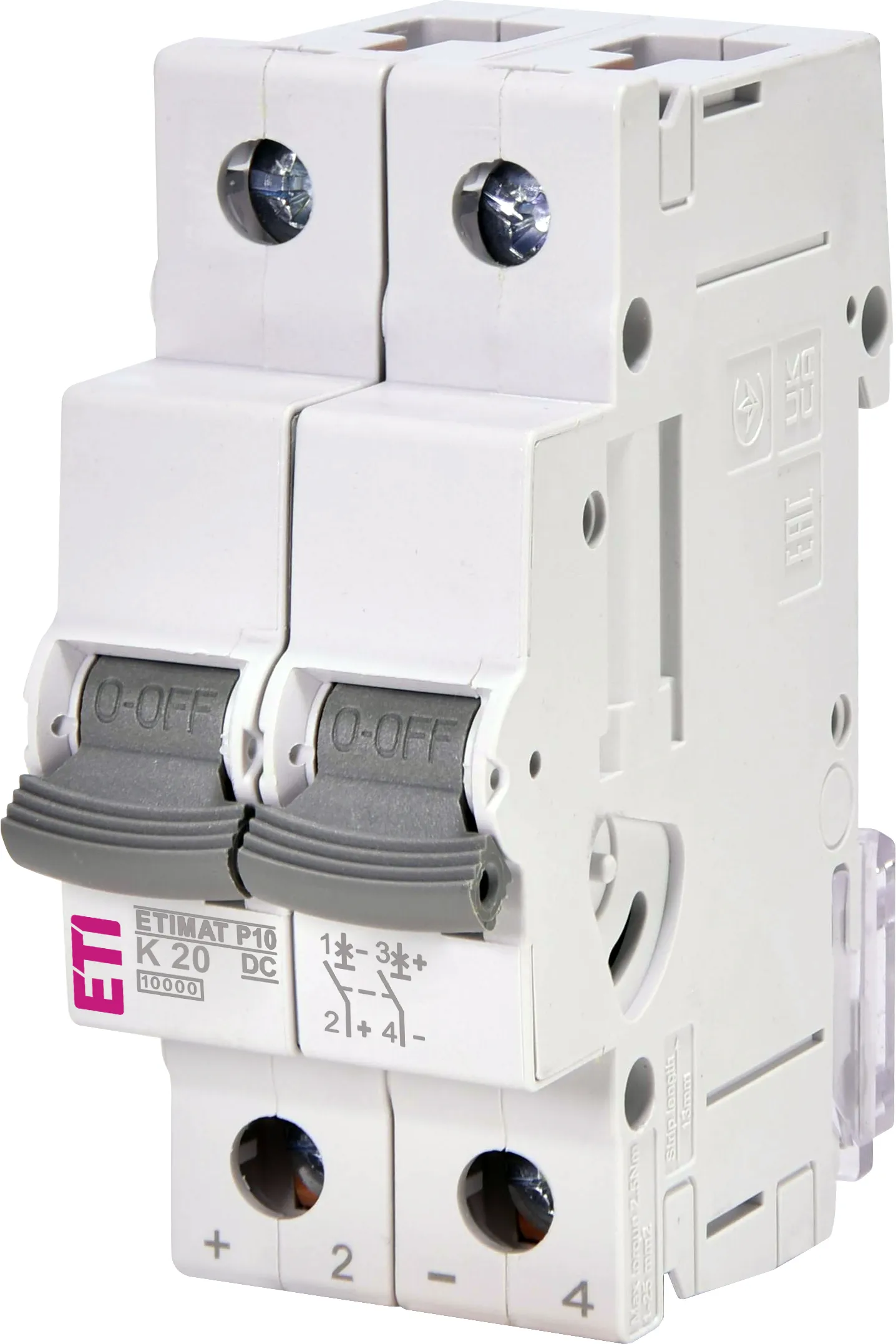

Miniature circuit breaker ETIMAT P10-DC 2p K20 001903271
Specifications
- ETI Code:
- 001903271
- Description:
- ETIMAT P10-DC 2p K20
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 20A
- Tripping characteristic:
- K
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10kA
- Voltage type:
- DC
- Rated Frequency (Hz):
- 1Hz/25Hz
- Rated impulse withstand voltage Uimp (kV):
- 6kV
- Rated cross section:
- 1mm²
- Standards:
- 60898-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895963325
- Net weight of the product
- 0.249 kg
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 89 mm
- logis_net_depth
- 75 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895963332
- Basic packaging weight
- 1200 g
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895963349
- Transport packaging weight
- 11.12 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC000042
- Class name
- Miniature circuit breaker (MCB)
- Release characteristic
- K
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated current
- 20A
- Rated voltage
- 440V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 6kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 10kA
- Voltage type
- DC
- Frequency
- 1…25Hz
- Current limiting class
- 3
- Suitable for flush-mounted installation
- Yes
- Concurrently switching neutral conductor
- Yes
- Over voltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 2
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -40…70°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
