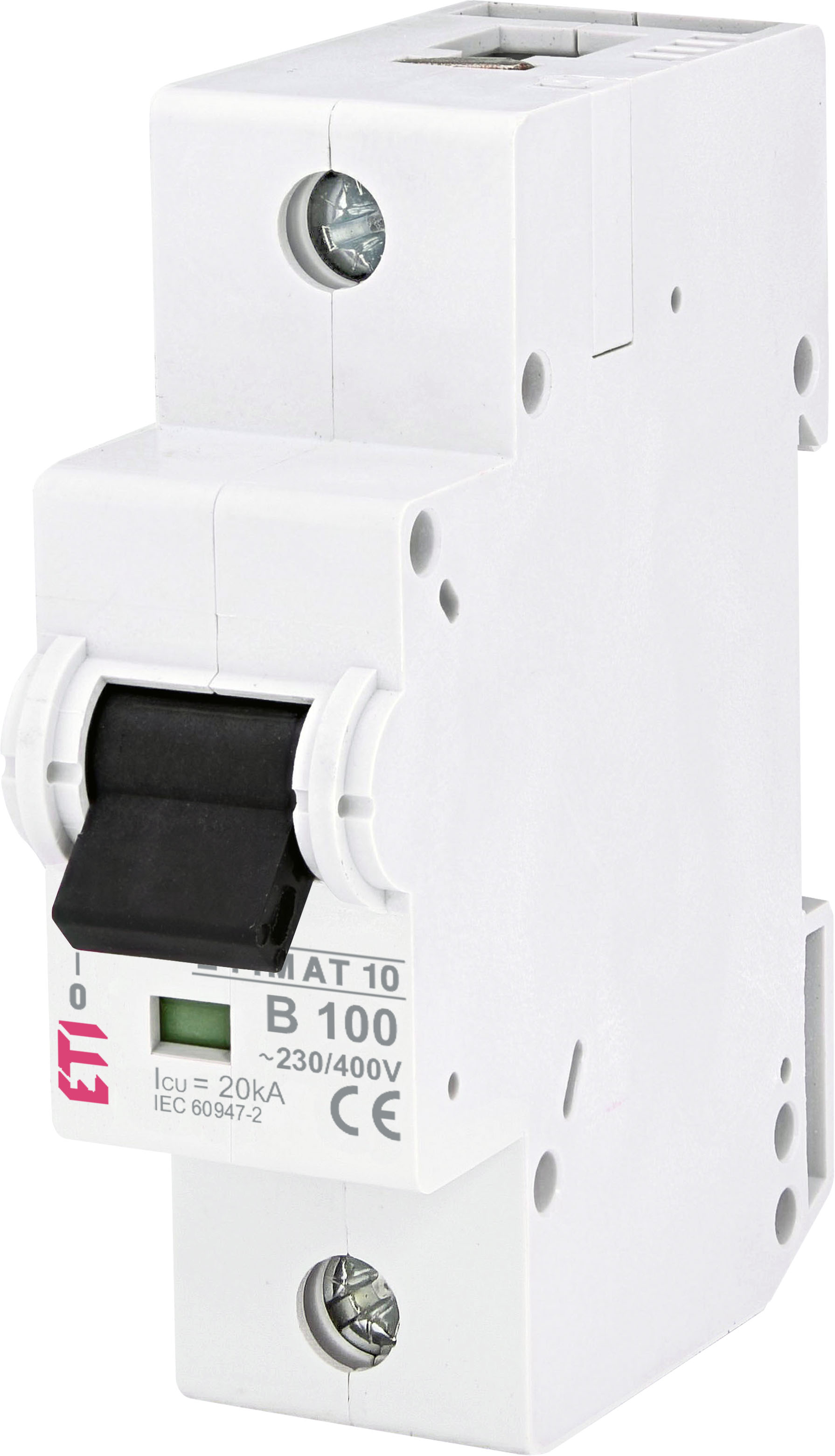

Miniature circuit breaker ETIMAT 10 1p B100 002121732
Specifications
- ETI Code:
- 002121732
- Description:
- ETIMAT 10 1p B100
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 100
- Tripping characteristic:
- B
- Number of poles:
- 1
- Short circuit capacity (kA):
- 20
- Voltage type:
- AC
- Rated voltage (V):
- 240/415
- Rated Frequency (Hz):
- 50/60
- Rated impulse withstand voltage Uimp (kV):
- 4
- Rated cross section:
- 2.5 - 50
- Standards:
- IEC/EN 60898-1, IEC 60947-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895811152
- Net weight of the product
- 0.25 kg
- Customs tariff
- 85362090
- logis_net_width
- 27 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 77 mm
Basic packaging
- Basic packaging quantity
- 2
- EAN code for a basic packaging
- 3838895811169
- Basic packaging weight
- 0.52 kg
Transport packaging
- Transport packaging quantity
- 72
- EAN code for a transport packaging
- 3838895811176
- Transport packaging weight
- 18.96 kg
- Pallet quantity
- 3744
ETIM Clasification
- Classification
- EC000042
- Class name
- Miniature circuit breaker (MCB)
- Release characteristic
- B
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 100A
- Rated voltage
- 230/400V
- Rated insulation voltage Ui
- 440V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 20kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 20kA
- Voltage type
- Other
- Type of drive
- 50…60Hz
- Current limiting class
- 3
- Over voltage category
- 3
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 1,5
- Built-in depth
- 75mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 2.5…50mm²
- Connectable conductor cross section solid-core
- 2.5…50mm²
