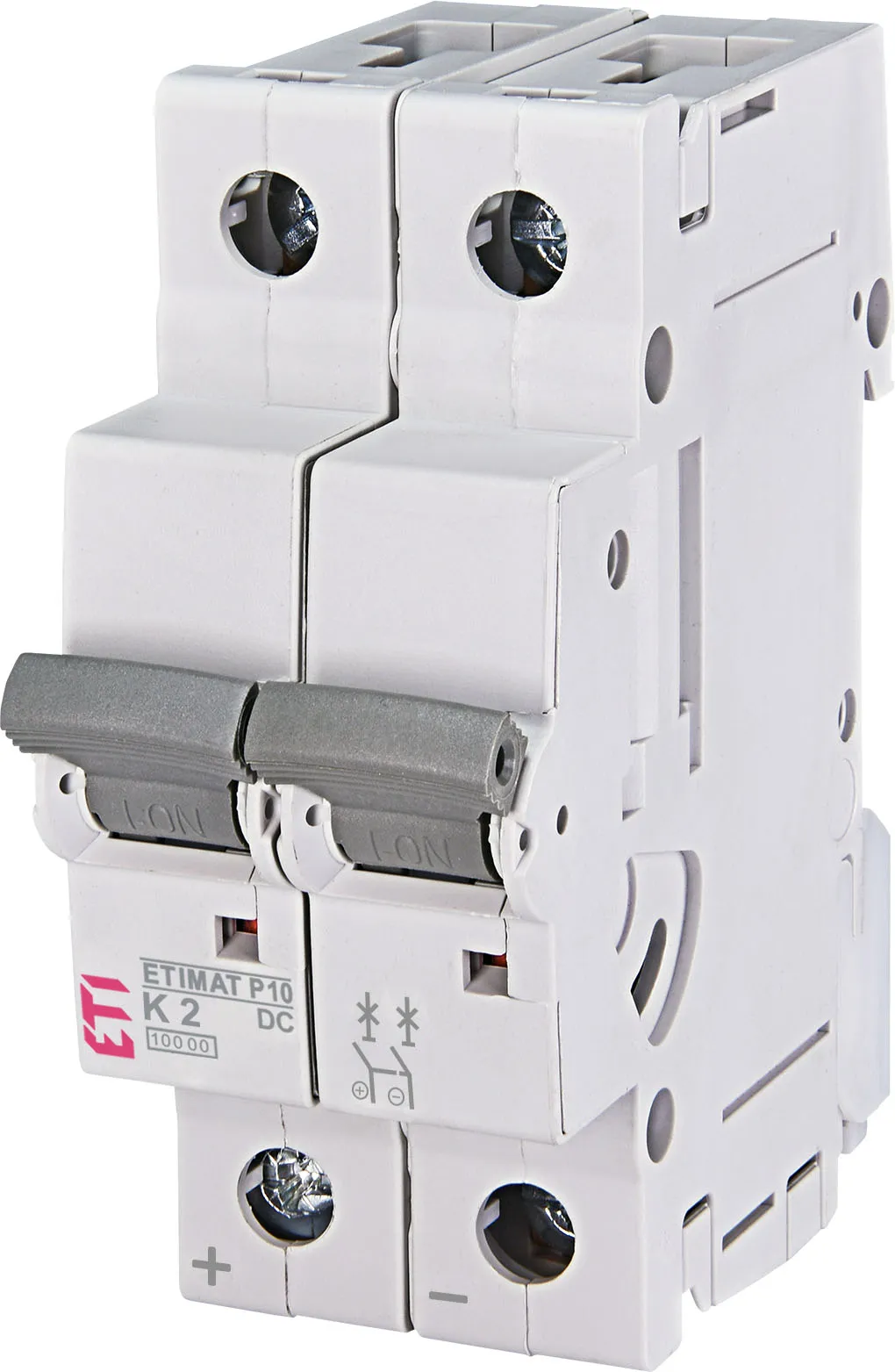

Miniature circuit breaker ETIMAT P10-DC 2p K2 260223104
Specifications
- ETI Code:
- 260223104
- Description:
- ETIMAT P10-DC 2p K2
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 2A
- Tripping characteristic:
- K
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10kA
- Voltage type:
- DC
- Rated Frequency (Hz):
- 50Hz/60Hz
- Rated cross section:
- 1mm²
- Standards:
- IEC/EN 60898-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895741961
- Net weight of the product
- 240 g
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895741978
- Basic packaging weight
- 1.494 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895741985
- Transport packaging weight
- 7.67 kg
- Pallet quantity
- 2520
ETIMAT P10-DC 2p K2
