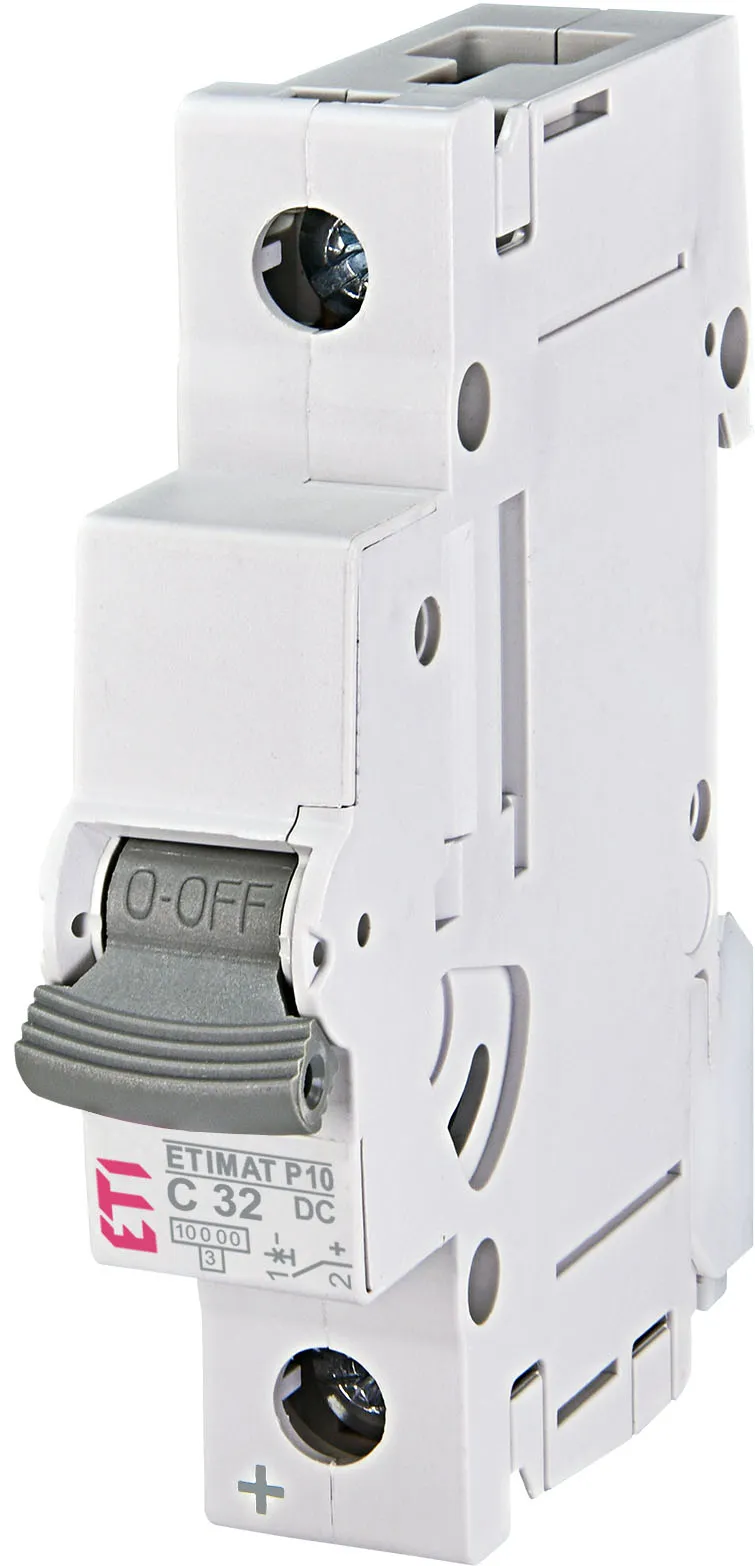

Miniature circuit breaker ETIMAT P10-DC 1p C32 263201101
Specifications
- ETI Code:
- 263201101
- Description:
- ETIMAT P10-DC 1p C32
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 32
- Tripping characteristic:
- C
- Number of poles:
- 1
- Short circuit capacity (kA):
- 10
- Voltage type:
- DC
- Rated voltage (V):
- 220
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 60898-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895685517
- Net weight of the product
- 0.115 kg
- Customs tariff
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895685524
- Basic packaging weight
- 1.446 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895685531
- Transport packaging weight
- 7.43 kg
- Pallet quantity
- 5040
