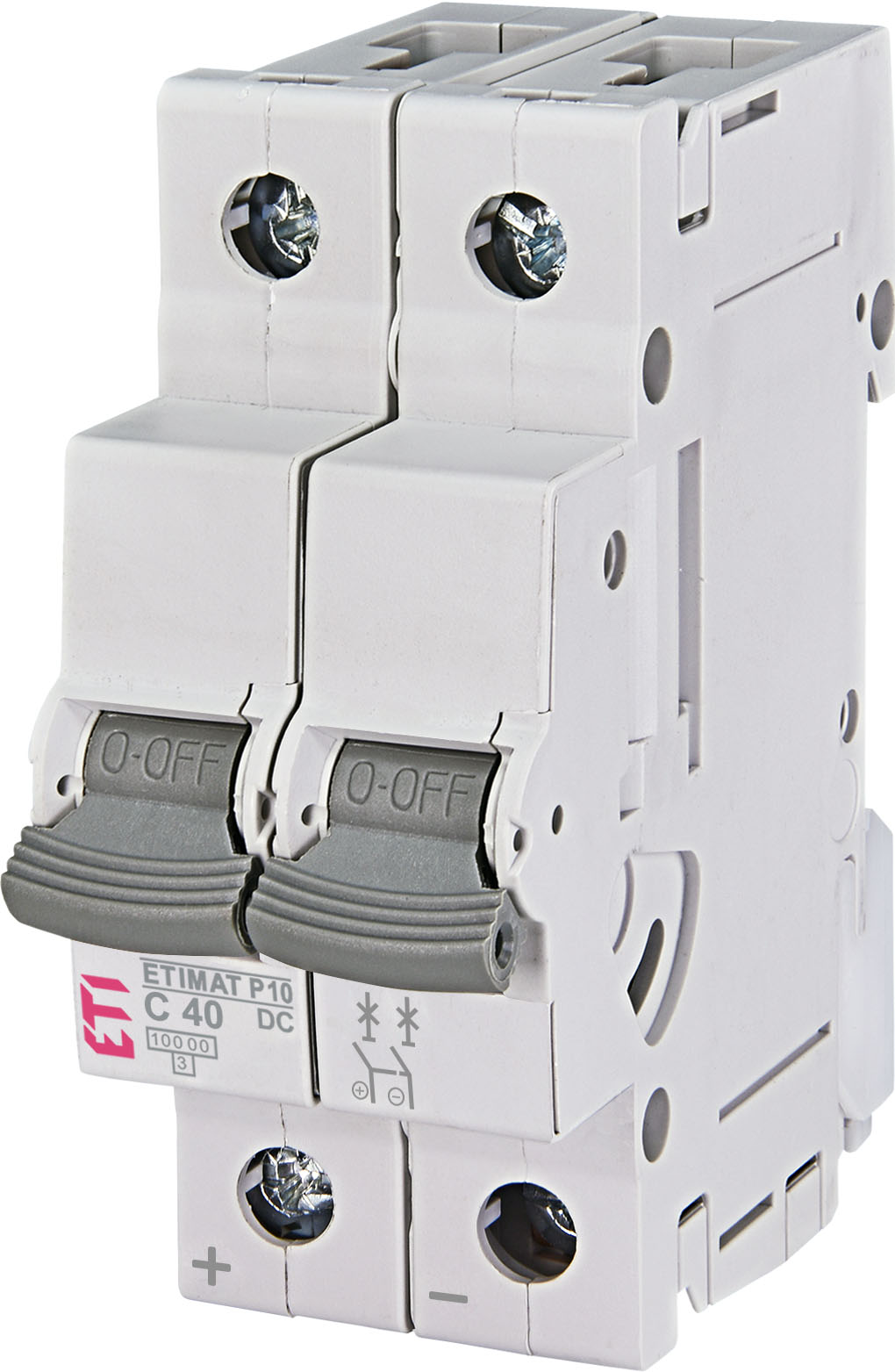

Miniature circuit breaker ETIMAT P10-DC 2p C40 264021100
Specifications
- ETI Code:
- 264021100
- Description:
- ETIMAT P10-DC 2p C40
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 40
- Tripping characteristic:
- C
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10
- Voltage type:
- DC
- Rated voltage (V):
- 440
- Rated Frequency (Hz):
- 50…60
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 60898-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895686286
- Net weight of the product
- 0.25 kg
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895686293
- Basic packaging weight
- 1.566 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895686309
- Transport packaging weight
- 8.03 kg
- Pallet quantity
- 2520
