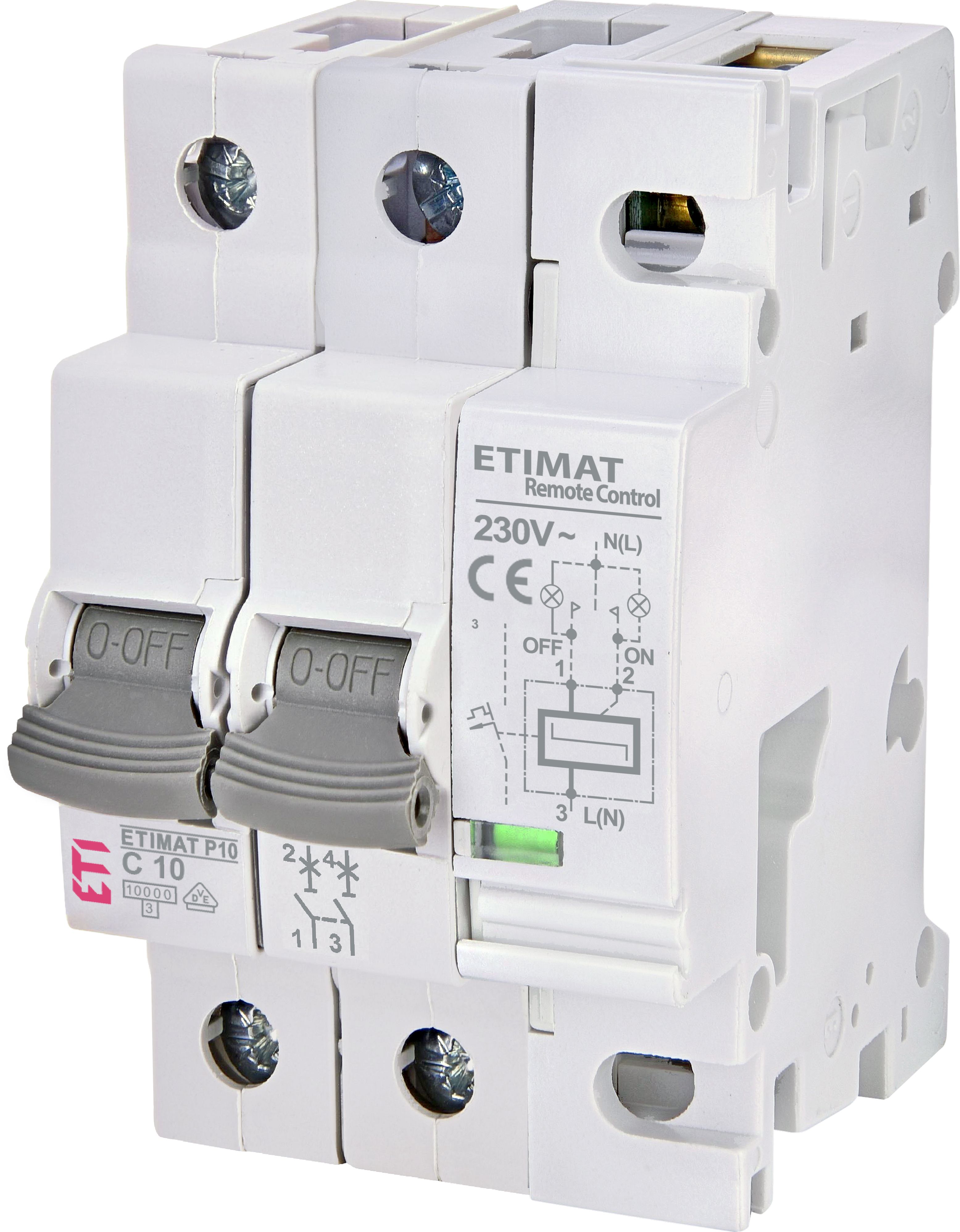

Miniature circuit breaker ETIMAT RC 2p C10 631021108 Obsolete
This product is obsolete and has been replaced with 001907228.
Compare products
Specifications
- ETI Code:
- 631021108
- Description:
- *ETIMAT RC 2p C10
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 10
- Tripping characteristic:
- C
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10
- Voltage type:
- AC
- Rated voltage (V):
- 400
- Rated Frequency (Hz):
- 50
- Rated impulse withstand voltage Uimp (kV):
- 4
- Rated cross section:
- 1-25
- Standards:
- EN 60669-2-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895590583
- Net weight of the product
- 0.35 kg
- Customs tariff
- 85362010
- logis_net_width
- 54 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 75 mm
Basic packaging
- Basic packaging quantity
- 2
- EAN code for a basic packaging
- 3838895590590
- Basic packaging weight
- 0.732 kg
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3838895590606
- Transport packaging weight
- 7.51 kg
- Pallet quantity
- 20
*ETIMAT RC 2p C10
