Fuse - base PK 0 M8-M8 3p 004132002
Specifications
- ETI Code:
- 004132002
- Description:
- PK 0 M8-M8 3p
- Class name:
- Fuse - base
- Product group:
- LV-fuse base
- Size:
- NH0
- Number of poles:
- 3
- Rated current (A):
- 160A
- Rated AC voltage (V):
- 690V
Documents
Logistic Data
Product
- Net weight of the product
- 0.954 kg
- Customs tariff
- 85389099
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895007128
- Basic packaging weight
- 0.91 kg
Transport packaging
- Transport packaging quantity
- 18
- EAN code for a transport packaging
- 3838895161639
- Transport packaging weight
- 17.17 kg
- Pallet quantity
- 360
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Construction size
- NH0
- Number of poles
- 3
- Rated current
- 160A

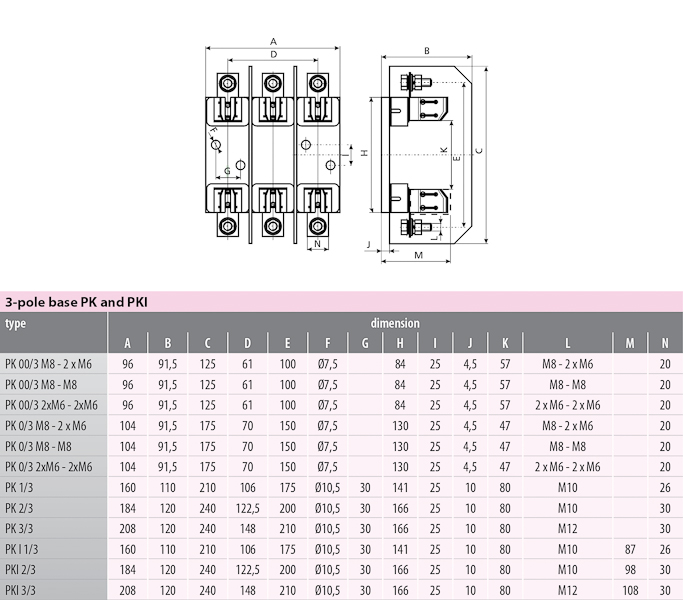

Images & Diagrams
