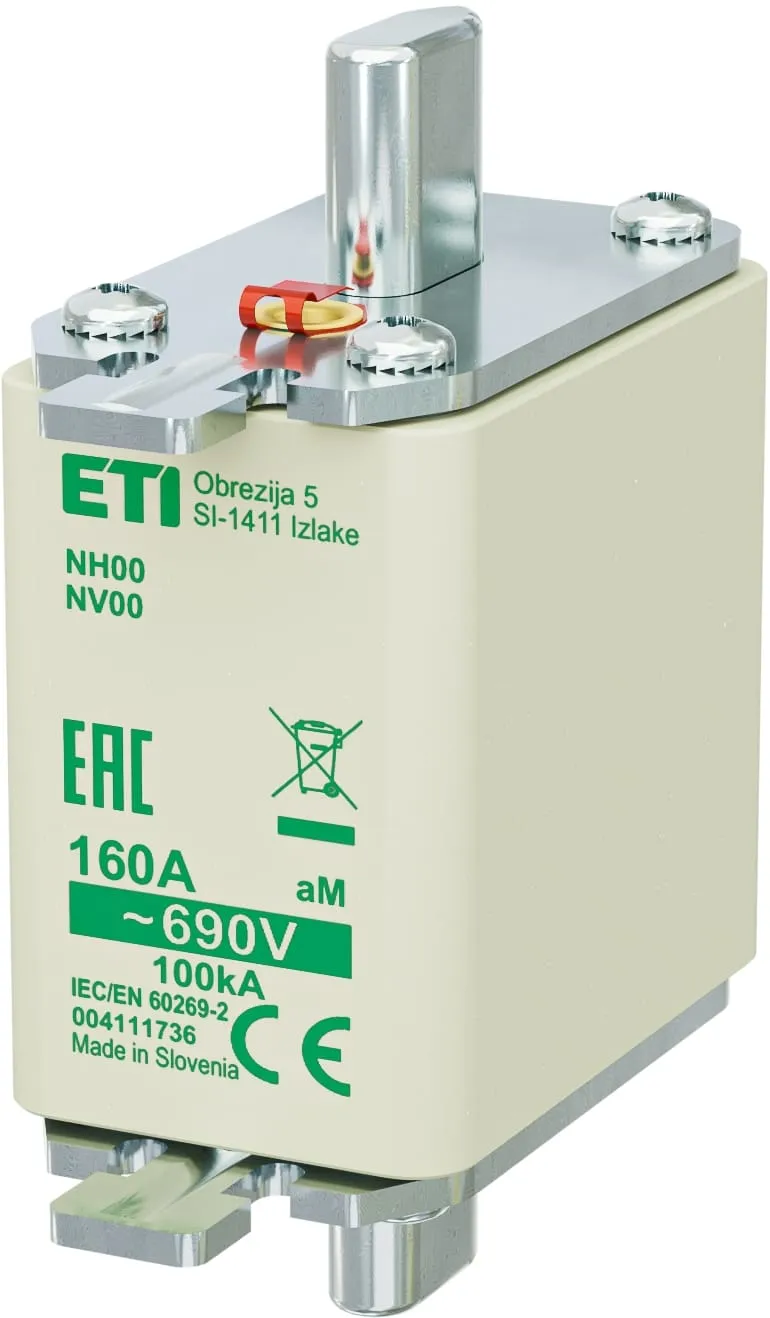

Fuse link NH00 aM 160A/690V 004111736

Specifications

ETI Code:
004111736
Description:
NH00 aM 160A/690V
Class name:
Fuse link
efuse:
1
Type:
NH
Size:
NH00
Rated current (A):
160
Rated AC voltage (V):
690
Characteristics:
aM
Breaking capacity AC (kA):
100
Application:
For relays, contactors and motors protection in case of short-circuit
Indicator:
Top fuse status indicator
Standards:
VDE 0636-2011

Documents

Product

EAN code for a single product
5904722911376
Net weight of the product
200  g
Customs tariff
85361090
logis_net_width
30  mm
logis_net_height
80  mm
logis_net_depth
59  mm

Level 1 Packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895024125
Basic packaging weight
0.47  kg

Level 2 Packaging

Transport packaging quantity
90
EAN code for a transport packaging
3838895159308
Transport packaging weight
15.05  kg
Pallet quantity
4680
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH00
Rated current
160
Rated voltage
690
Voltage type
AC
Rated switching capacity
100
Utilization category
aM (switchgear protection)
Type of fuse status indicator
Top fuse status indicator
ETIM Classification – Version 7.0
