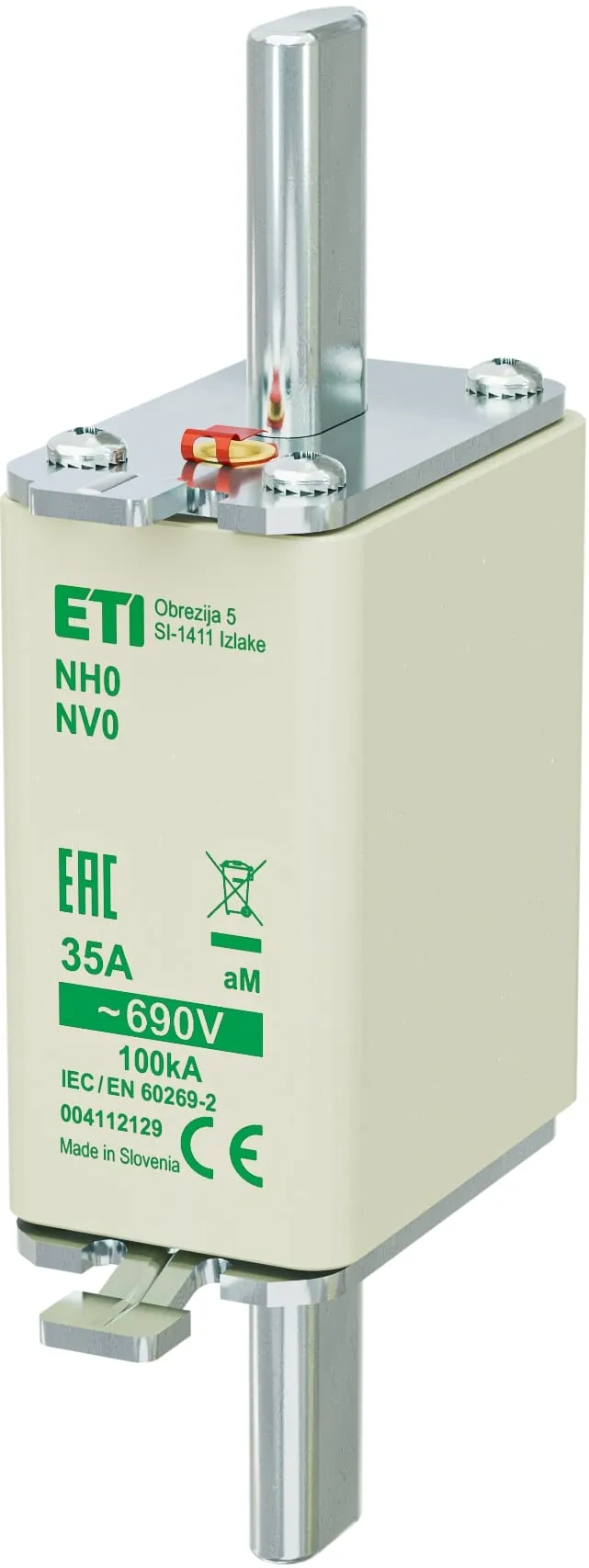

Fuse link NH0 aM 35A/690V 004112129

Specifications

ETI Code:
004112129
Description:
NH0 aM 35A/690V
Class name:
Fuse link
Type:
NH
Size:
NH0
Rated current (A):
35
Rated AC voltage (V):
690
Characteristics:
aM
Breaking capacity AC (kA):
100
Application:
For relays, contactors and motors protection in case of short-circuit
Indicator:
Top fuse status indicator
Standards:
VDE 0636-2011

Documents

Product

EAN code for a single product
5904722911529
Net weight of the product
265  g
Customs tariff
85361050
logis_net_width
30  mm
logis_net_height
125  mm
logis_net_depth
56  mm

Level 1 Packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895026297
Basic packaging weight
0.68  kg

Level 2 Packaging

Transport packaging quantity
45
EAN code for a transport packaging
3838895159469
Transport packaging weight
10.9  kg
Pallet quantity
2925
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH0
Rated current
35
Rated voltage
690
Voltage type
AC
Rated switching capacity
100
Utilization category
aM (switchgear protection)
Type of fuse status indicator
Top fuse status indicator
ETIM Classification – Version 7.0
