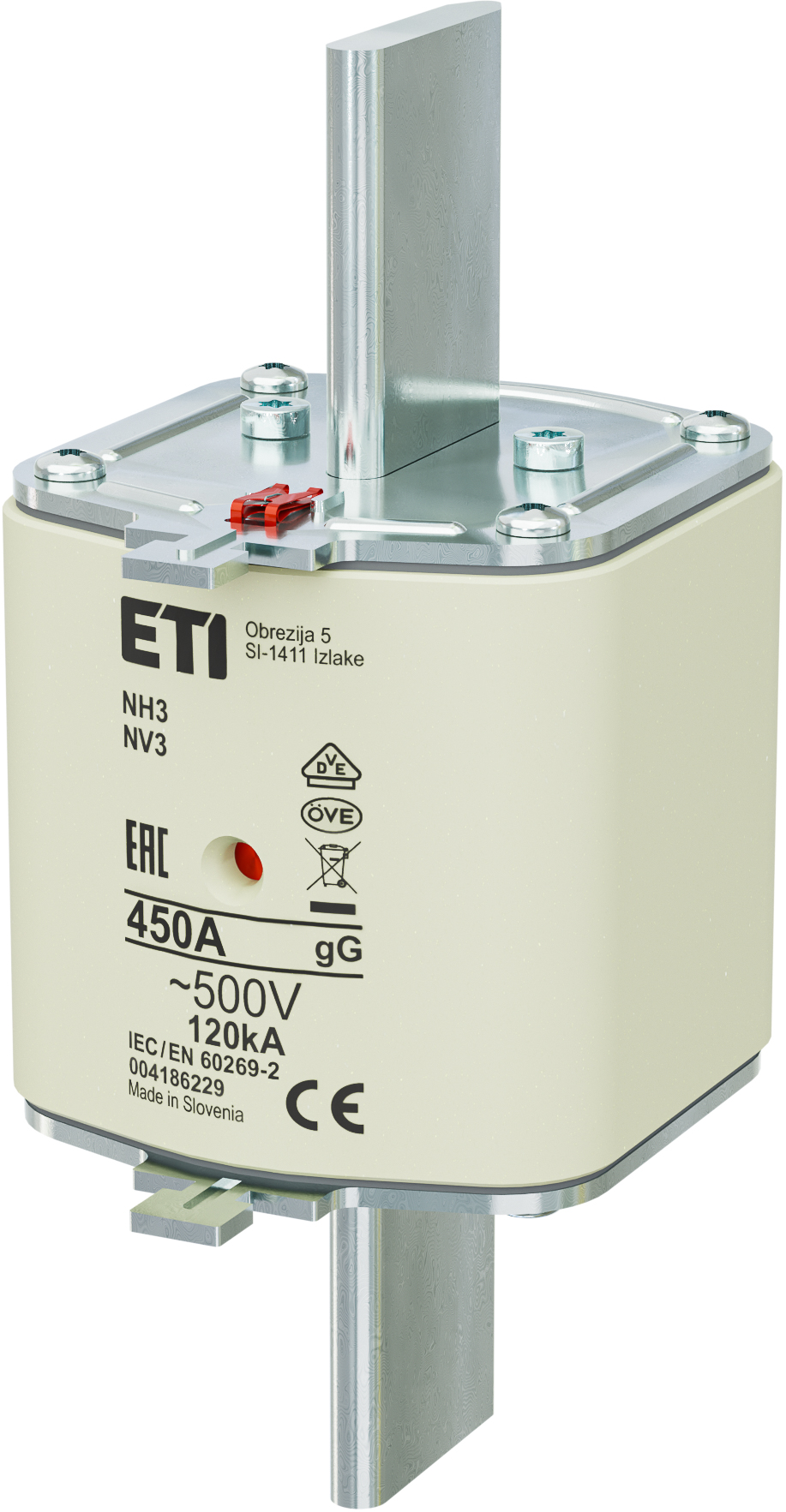

Fuse link NH3 gG 450A/500V 004186229
Specifications
- ETI Code:
- 004186229
- Description:
- NH3 gG 450A/500V
- Class name:
- Fuse link
- Type:
- NH
- Size:
- NH3
- Rated current (A):
- 450
- Rated AC voltage (V):
- 500
- Rated DC voltage (V):
- 250
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 28,2
- Operating joule integral (A2s):
- 2.300.000
- Prearcing joule integral (A2s):
- 675.000
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400119728
- Net weight of the product
- 0.785 kg
- Customs tariff
- 85361090
- logis_net_width
- 65 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 83 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895697275
- Basic packaging weight
- 1.53 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895697282
- Transport packaging weight
- 6.65 kg
- Pallet quantity
- 624
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3
- Rated current
- 450
- Rated voltage
- 500
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
