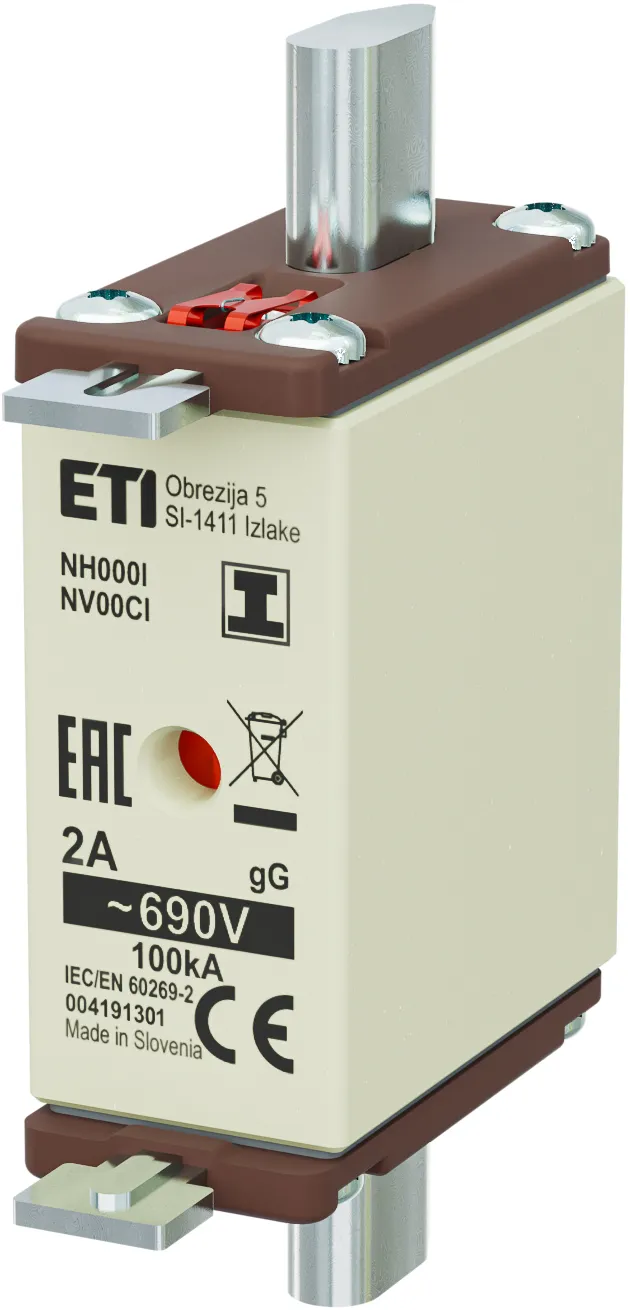

Fuse link NH000/I gG 2A/690V 004191301
Specifications
- ETI Code:
- 004191301
- Description:
- NH000/I gG 2A/690V
- Class name:
- Fuse link
- Type:
- NH-I
- Size:
- NH000
- Rated current (A):
- 2A
- Rated AC voltage (V):
- 690V
- Rated DC voltage (V):
- 250V
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 100kA
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 0.7W
- Operating joule integral (A2s):
- 27.3
- Prearcing joule integral (A2s):
- 7.3
- Standards:
- IEC 60269-1,IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400033338
- Net weight of the product
- 120 g
- Customs tariff
- 85361010
- logis_net_width
- 21 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 52 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895317043
- Basic packaging weight
- 0.377 kg
Transport packaging
- Transport packaging quantity
- 120
- EAN code for a transport packaging
- 3838895317050
- Transport packaging weight
- 15.4 kg
- Pallet quantity
- 6240
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH000
- Rated current
- 2
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Yes
