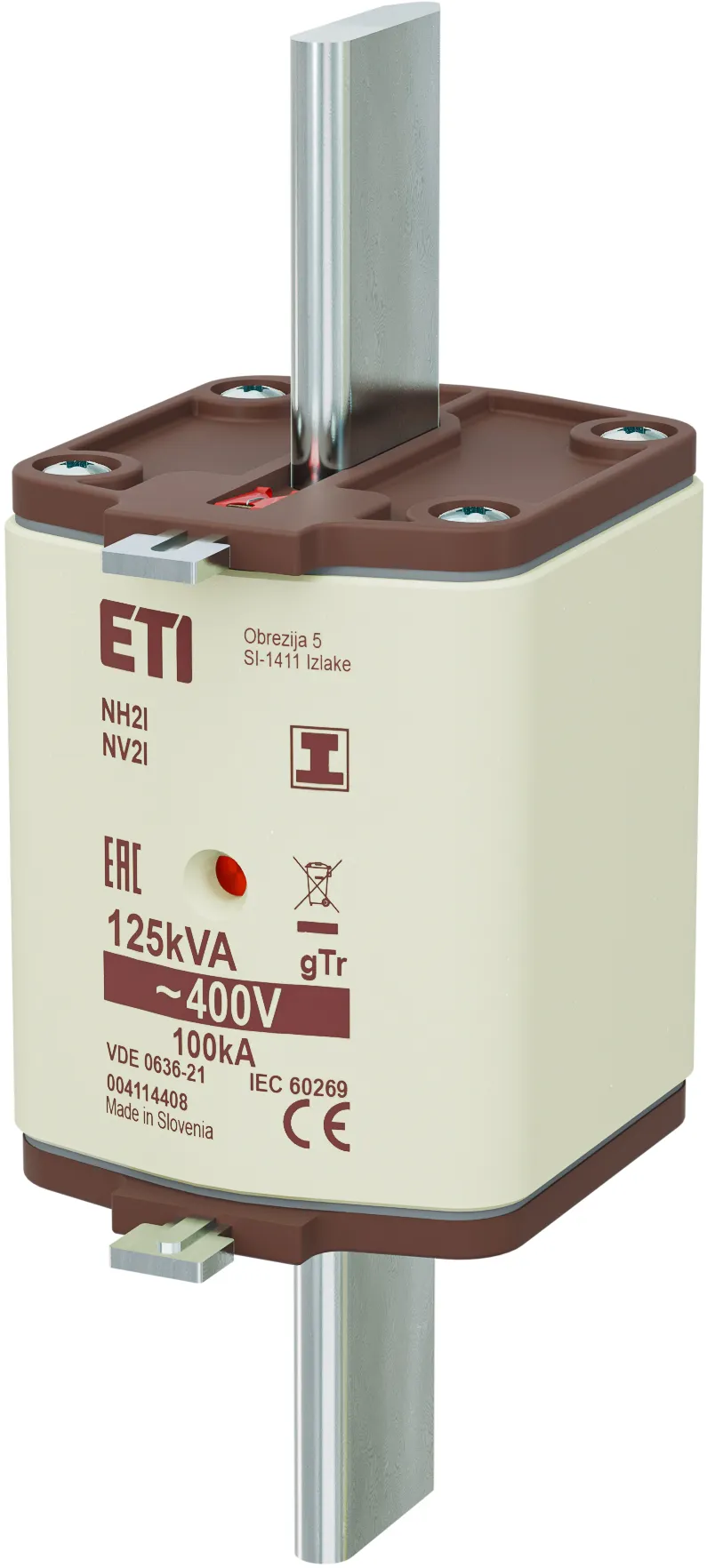

Fuse link NH2/I gTr 181A/400V 125kVA 004114408

Specifications

ETI Code:
004114408
Description:
NH2/I gTr 181A/400V 125kVA
Class name:
Fuse link
efuse:
1
Type:
NH-I
Size:
NH2
Transformer:
125kVA
Rated AC voltage (V):
400
Characteristics:
gTr
Breaking capacity AC (kA):
100
Application:
Protection of transformers
Indicator:
Combination fuse status indicator
Power dissipation (W):
14
Operating joule integral (A2s):
340.000
Prearcing joule integral (A2s):
110.000
Standards:
VDE 0636-21

Documents

Product

EAN code for a single product
3838400038180
Net weight of the product
580  g
Customs tariff
85361090
logis_net_width
54  mm
logis_net_height
150  mm
logis_net_depth
73  mm

Level 1 Packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895736417
Basic packaging weight
1.88  kg

Level 2 Packaging

Transport packaging quantity
15
EAN code for a transport packaging
3838895736424
Transport packaging weight
9.635  kg
Pallet quantity
780
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH2
Rated current
180
Rated voltage
400
Voltage type
AC
Rated switching capacity
100
Utilization category
gTr (Transformer protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
ETIM Classification – Version 7.0
