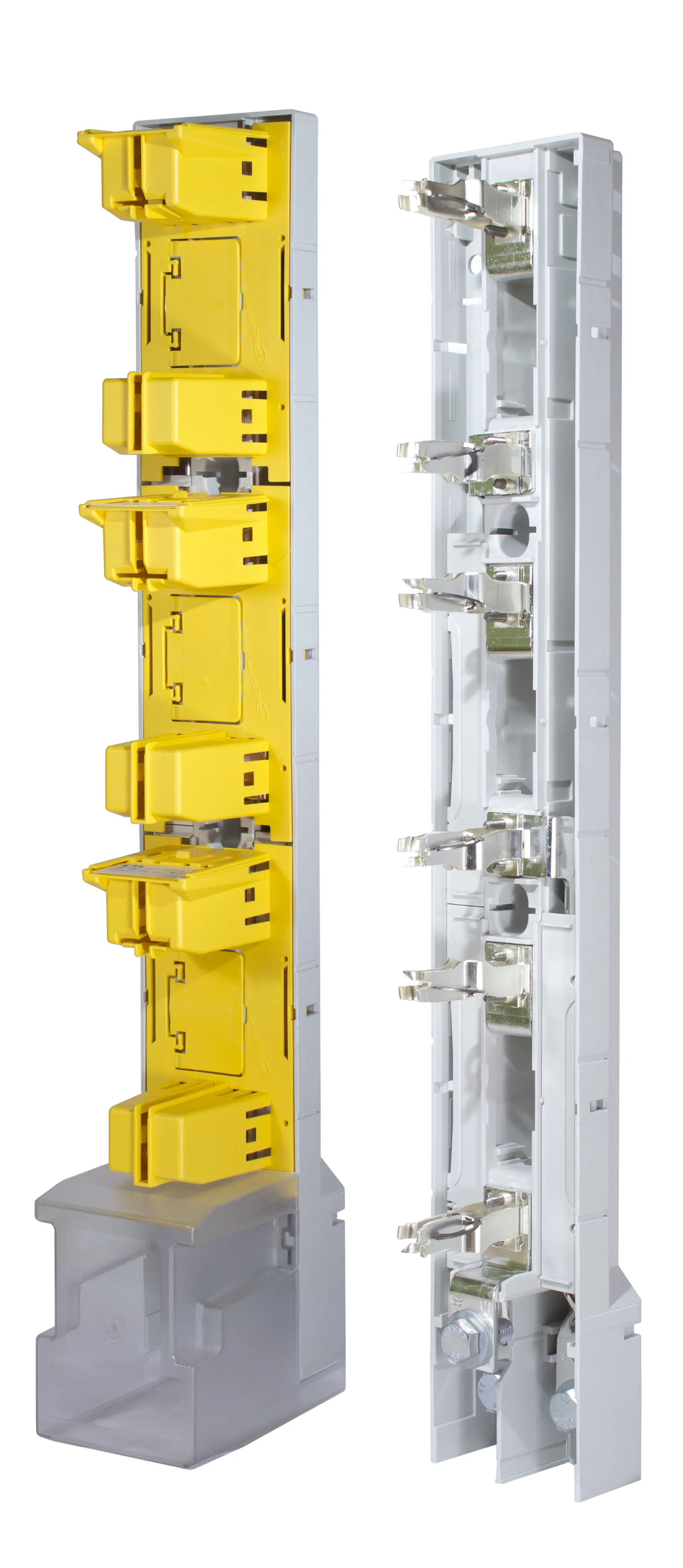

Strip-fuseway VL1 SP.300 001691025

Specifications

ETI Code:
001691025
Description:
VL1 SP.300
Class name:
Strip-fuseway
Rated current (A):
250A
Size:
NH1
Rated AC voltage (V):
690V
Product group:
LV-fuse rail

Documents

Product

Net weight of the product
4.44  kg
Customs tariff
85389099

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
4029155484745
Transport packaging weight
4.187  kg
Pallet quantity
50
Classification
EC000067
Class name
Low Voltage HRC fuse base
Construction size
NH1
Number of poles
3
Rated current
250A
ETIM Classification – Version 7.0

Images & Diagrams

001691025 Flush mounted enclosure Strip-fuseway, VL1 SP.300 NV/NH Low voltage fuse-rails Low voltage fuse-rails VL VL VL Fuse links NH Fuse rails NH VL1 SP.300 Rated current 250A Mounting type Busbar mounting Size NH1 Number of poles 3 Product group LV-fuse rail Rated AC voltage 690V Connection SP.300 Mounting Screw-on Catalogue Group LV-fuse rail Strip-fuseway VL1

Accessories 254

>
>
