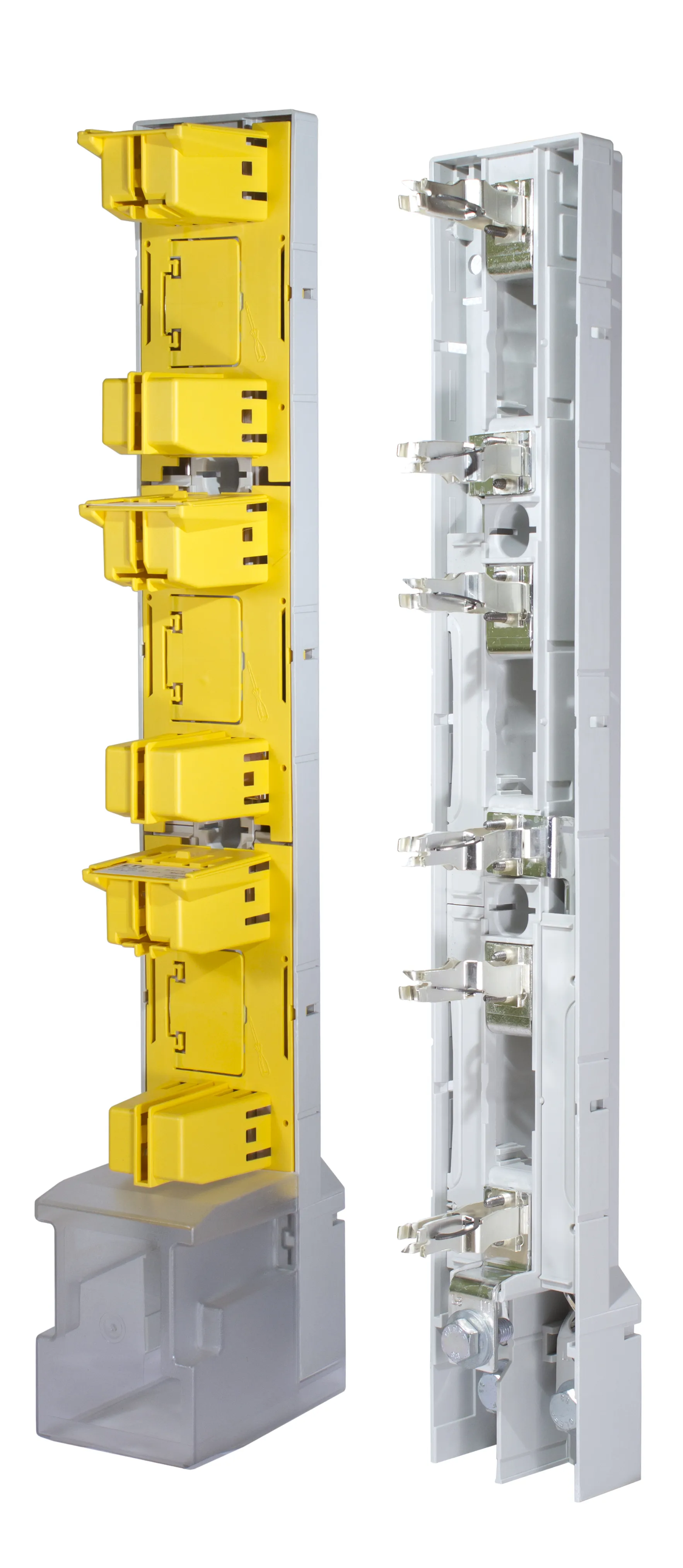

Strip-fuseway VL00/100 BT00 10-70 001701601
Specifications
- ETI Code:
- 001701601
- Description:
- VL00/100 BT00 10-70
- Class name:
- Strip-fuseway
- Rated current (A):
- 160
- Size:
- NH00
- Rated AC voltage (V):
- 690
- Product group:
- LV-fuse rail
- Connection:
- BT00 10-70
- Mounting:
- Screw-on
Documents
Logistic Data
Product
- Customs tariff
- 85363090
- logis_net_width
- 49 mm
- logis_net_height
- 411 mm
- logis_net_depth
- 112 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895664192
- Transport packaging weight
- 1.05 kg
- Pallet quantity
- 306
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Construction size
- NH00
- Number of poles
- 3
- Rated current
- 160A
