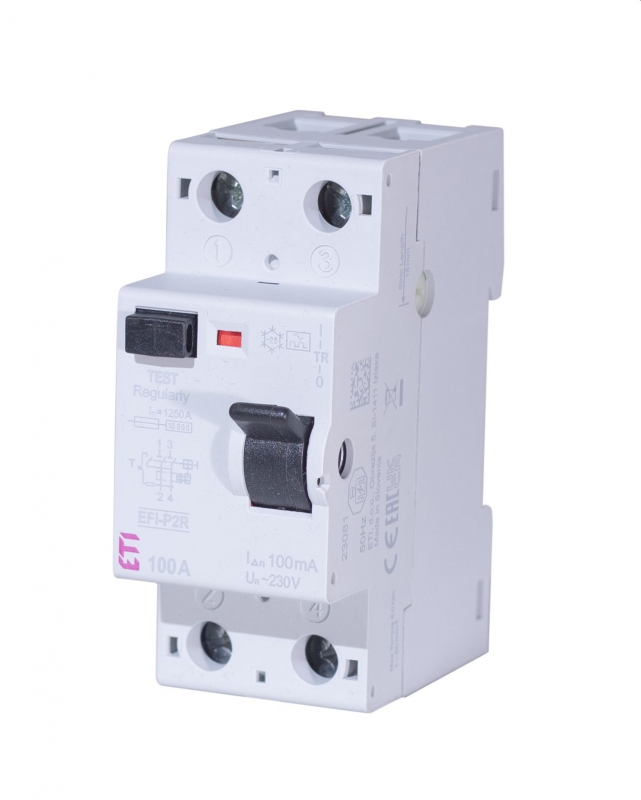

RCCB EFI-P2R A 125/0.03 002061466
Specifications
- ETI Code:
- 002061466
- Description:
- EFI-P2R A 125/0.03
- Class name:
- RCCB
- Rated residual current (A):
- 0.03
- Current type:
- AC
- Rated current (A):
- 125
- Type:
- A
- Number of poles:
- 2
- Rated conditional short-circuit current Inc (kA):
- 10
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50/60
- Rated cross section:
- 1-50
- Standards:
- EN/IEC 61008-1
- IP rating:
- IP20
- Mounting type:
- TH 35
- Depth (mm):
- 71
Documents
Logistic Data
Product
- Customs tariff
- 85362090
- logis_net_width
- 35 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 69 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895969051
- Basic packaging weight
- 0.207 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895969068
- Transport packaging weight
- 11.478 kg
- Pallet quantity
- 2916
ETIM Clasification
- Classification
- EC000003
- Class name
- Residual current circuit breaker (RCCB)
- Number of poles
- 2
- Rated voltage
- 230V
- Rated current
- 125A
- Rated fault current
- 30mA
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- AC
- Selective protection
- No
- Short-time delayed tripping
- No
- Short-circuit breaking capacity (Icw)
- 10kA
- Surge current capacity
- 0,25kA
- Frequency
- 50/60 Hz
- Additional equipment possible
- Yes
- With interlocking device
- No
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 2
- Built-in depth
- 71mm
- Ambient temperature during operating
- -25…40°C
- Pollution degree
- 2
- Connectable conductor cross section multi-wired
- 1…50mm²
- Connectable conductor cross section solid-core
- 1…50mm²

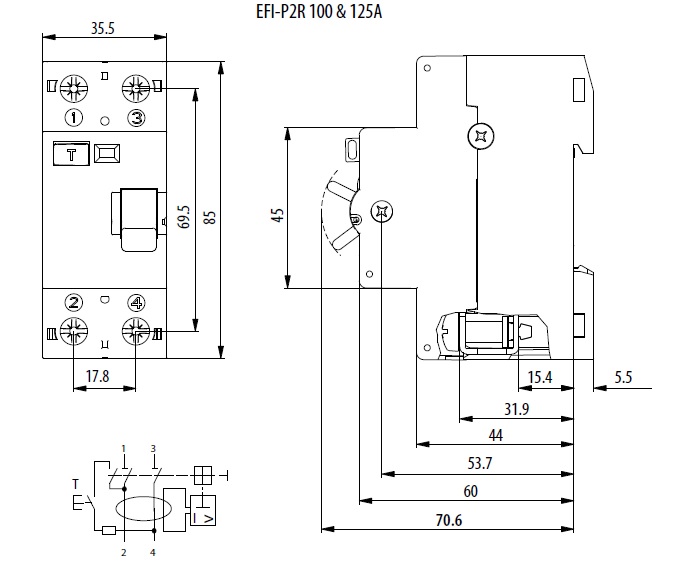

Images & Diagrams
