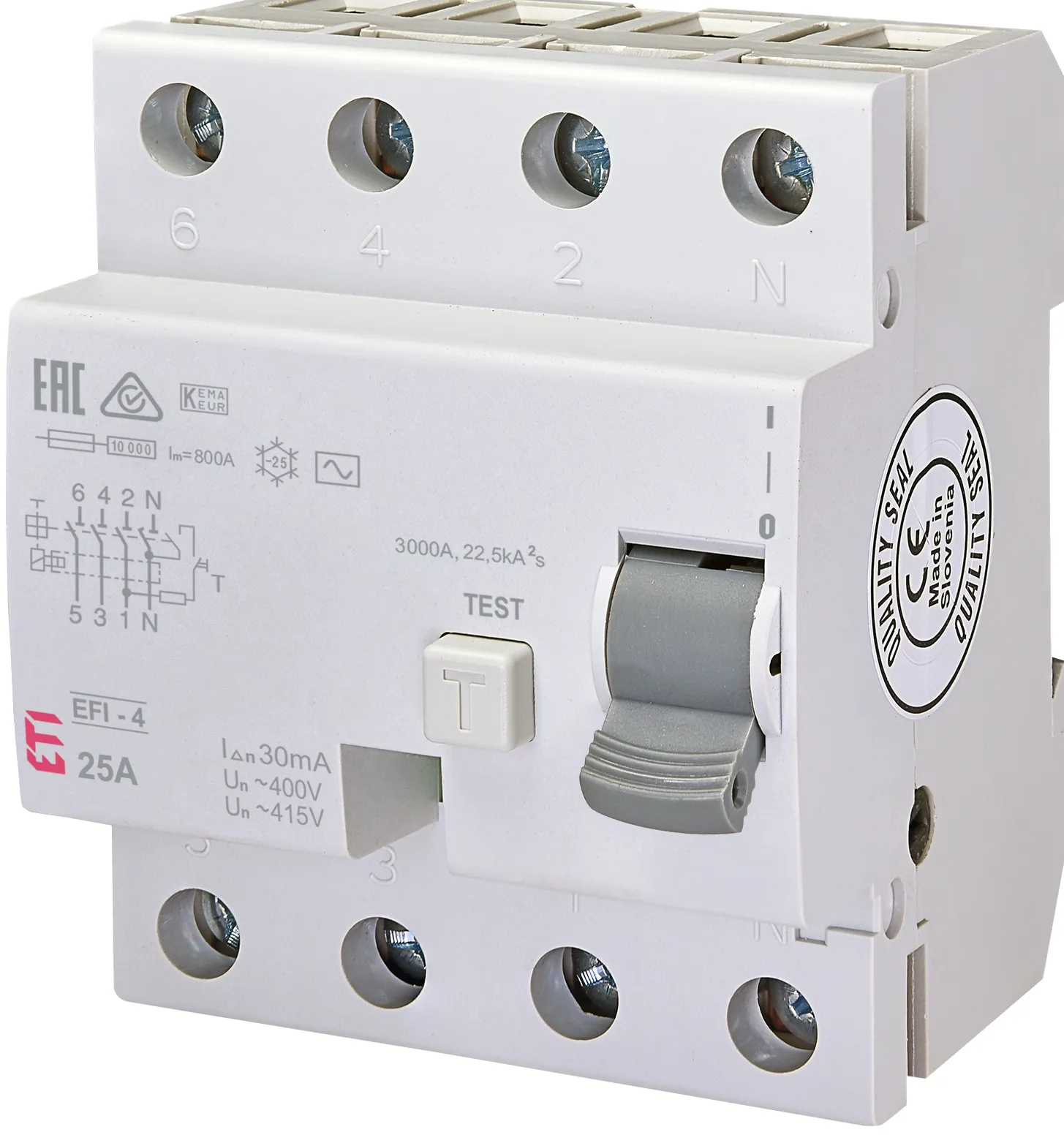

RCCB EFI-4 AC 25/0.03 002062142 Obsolete
This product is obsolete and has been replaced with EFI-P4 AC 25/0.03.
Compare products
Specifications
- ETI Code:
- 002062142
- Description:
- *EFI-4 AC 25/0.03
- Class name:
- RCCB
- Rated residual current (A):
- 3A
- Rated current (A):
- 25A
- Number of poles:
- 3+N
- Rated conditional short-circuit current Inc (kA):
- 10kA
- Rated Frequency (Hz):
- 50Hz/60Hz
- Rated cross section:
- 1mm²
- Standards:
- IEC/EN 61008
- IP rating:
- IP20
- Mounting type:
- TH 35
- Depth (mm):
- 68mm
Documents
Logistic Data
Product
- Net weight of the product
- 305 g
- Customs tariff
- 85362010
- logis_net_width
- 72 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895128793
- Basic packaging weight
- 0.383 kg
Transport packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838895277088
- Transport packaging weight
- 10.7 kg
- Pallet quantity
- 1404
ETIM Clasification
- Classification
- EC000003
- Class name
- Residual current circuit breaker (RCCB)
- Number of poles
- 4
- Rated voltage
- 415V
- Rated current
- 25A
- Rated fault current
- 30mA
- Mounting method
- DIN rail
- Leakage current type
- AC
- Short-circuit breaking capacity (Icw)
- 10kA
- Frequency
- 50/60 Hz
- Additional equipment possible
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 68mm
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
*EFI-4 AC 25/0.03
