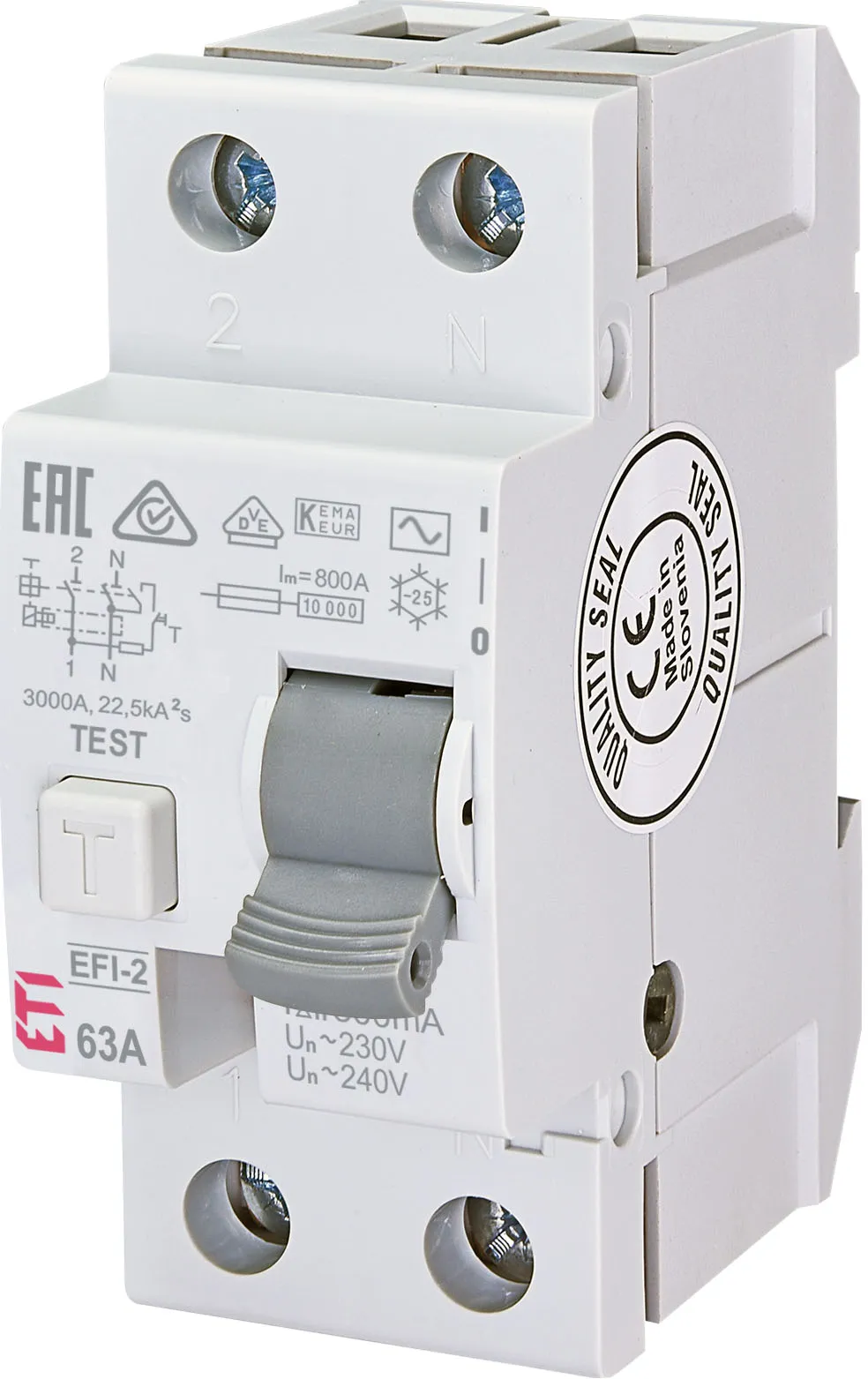

RCCB EFI-2 AC 63/0.3 002064124 Obsolete
This product is obsolete and has been replaced with EFI-P2 AC 63/0.3.
Compare products
Specifications
- ETI Code:
- 002064124
- Description:
- *EFI-2 AC 63/0.3
- Class name:
- RCCB
- Rated residual current (A):
- 3A
- Rated current (A):
- 63A
- Number of poles:
- 1+N
- Rated conditional short-circuit current Inc (kA):
- 10kA
- Rated Frequency (Hz):
- 50Hz/60Hz
- Rated cross section:
- 1mm²
- Standards:
- IEC/EN 61008
- IP rating:
- IP20
- Mounting type:
- TH 35
- Depth (mm):
- 69mm
Documents
Logistic Data
Product
- Net weight of the product
- 185 g
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895021124
- Basic packaging weight
- 0.224 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895276760
- Transport packaging weight
- 12.46 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC000003
- Class name
- Residual current circuit breaker (RCCB)
- Number of poles
- 2
- Rated voltage
- 240V
- Rated current
- 63A
- Rated fault current
- 300mA
- Rated insulation voltage Ui
- 500V
- Mounting method
- DIN rail
- Leakage current type
- AC
- Short-circuit breaking capacity (Icw)
- 10kA
- Frequency
- 50/60 Hz
- Additional equipment possible
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 2
- Built-in depth
- 69mm
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
*EFI-2 AC 63/0.3
