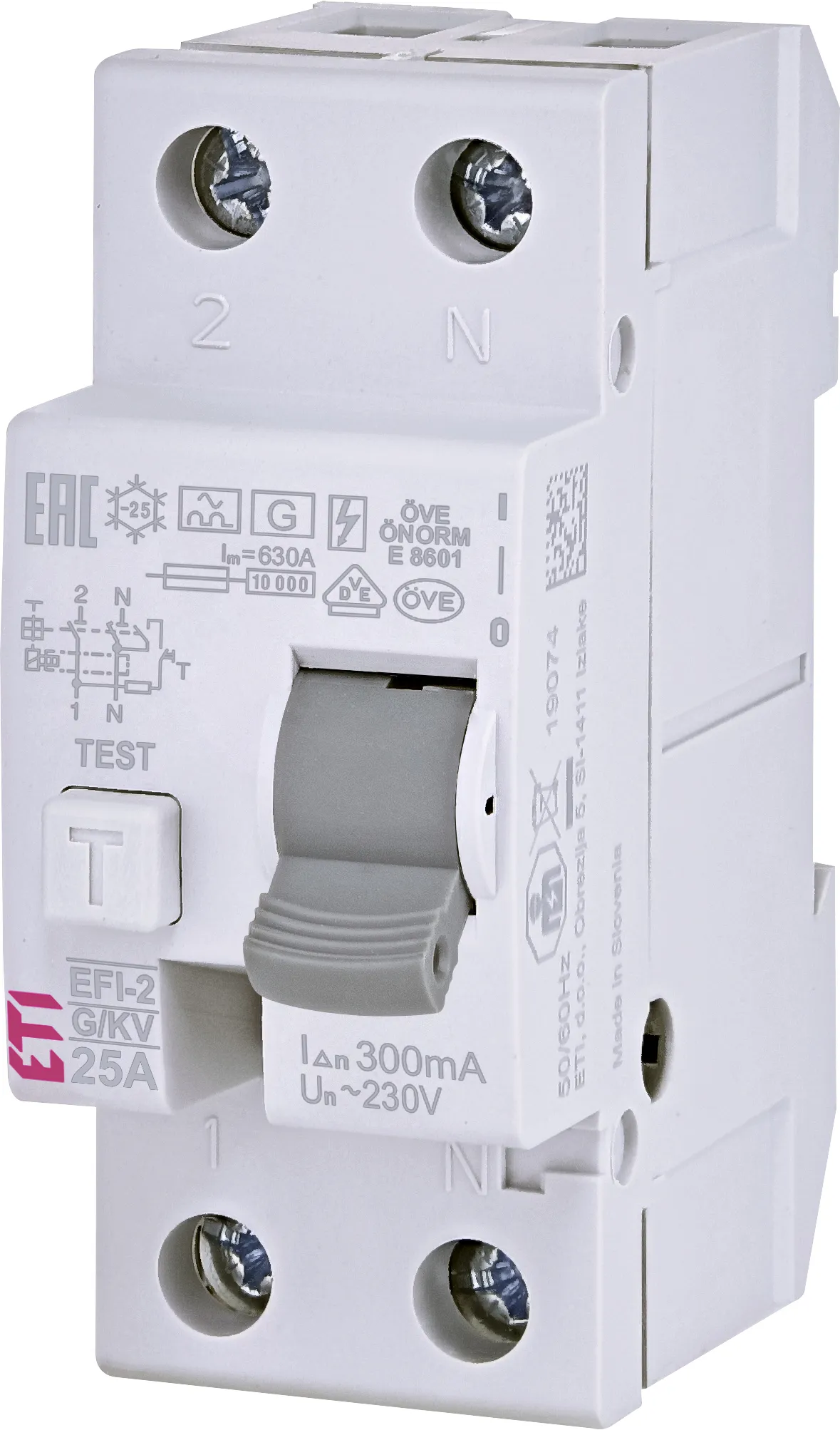

RCCB EFI-2 A G/KV 25/0.3 002064727 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 002064727
- Description:
- *EFI-2 A G/KV 25/0.3
- Class name:
- RCCB
- Rated residual current (A):
- 3A
- Rated current (A):
- 25A
- Number of poles:
- 1+N
- Rated conditional short-circuit current Inc (kA):
- 10kA
- Tripping time:
- G/KV (Short time delay)
- Rated Frequency (Hz):
- 50Hz/60Hz
- Rated cross section:
- 1mm²
- Standards:
- IEC/EN 61008,ÖVE E 8601
- IP rating:
- IP20
- Mounting type:
- TH 35
- Depth (mm):
- 69mm
Documents
Logistic Data
Product
- Net weight of the product
- 0.185 kg
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895730408
- Basic packaging weight
- 0.22 kg
Transport packaging
- Transport packaging quantity
- 54
- EAN code for a transport packaging
- 3838895730415
- Transport packaging weight
- 12.24 kg
- Pallet quantity
- 2808
ETIM Clasification
- Classification
- EC000003
- Class name
- Residual current circuit breaker (RCCB)
- Number of poles
- 2
- Rated voltage
- 230V
- Rated current
- 25A
- Rated fault current
- 300mA
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- A
- Short-time delayed tripping
- Yes
- Short-circuit breaking capacity (Icw)
- 10kA
- Surge current capacity
- 3kA
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 2
- Built-in depth
- 69mm
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
*EFI-2 A G/KV 25/0.3
