Fuse link Mini fuse 6,3x32 HT 25A/500V 006710333
Specifications
- ETI Code:
- 006710333
- Description:
- Mini fuse 6,3x32 HT 25A/500V
- Class name:
- Fuse link
- Rated current (A):
- 25A
- Type:
- CH
- Size:
- 6,3x32
- Characteristics:
- HT
- Rated AC voltage (V):
- 440V
- Rated DC voltage (V):
- 440V
- Breaking capacity AC (kA):
- 1.5kA
- Operating joule integral (A2s):
- 5600
- Application:
- Electronic devices protection
- Power dissipation (W):
- 1.2W
- Standards:
- IEC 60127-1,IEC 60127-2
Documents
Logistic Data
Product
- Net weight of the product
- 0.01 kg
- Customs tariff
- 85361050
- logis_net_width
- 6 mm
- logis_net_height
- 32 mm
- logis_net_depth
- 6 mm
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 8024873024347
- Transport packaging weight
- 0.1 kg
- Pallet quantity
- 80000
ETIM Clasification
- Classification
- EC002704
- Class name
- Miniature fuse
- Release characteristic
- Fast (F)
- Model
- Glass fuse
- Rated current
- 20A
- Rated voltage
- 440V

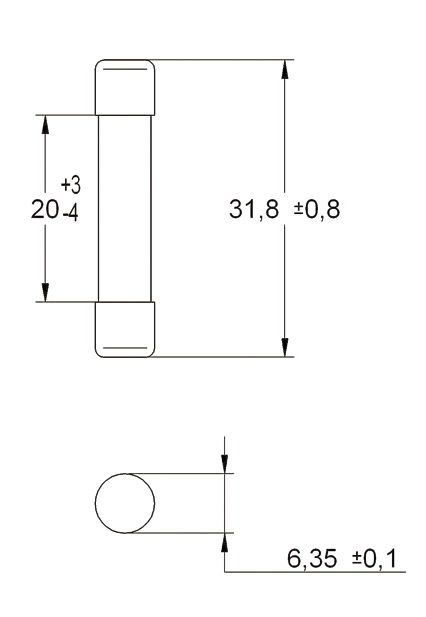

Images & Diagrams
Tags
Accessories 1
>
>
0
Mini fuse 6,3x32 HT 25A/500V
