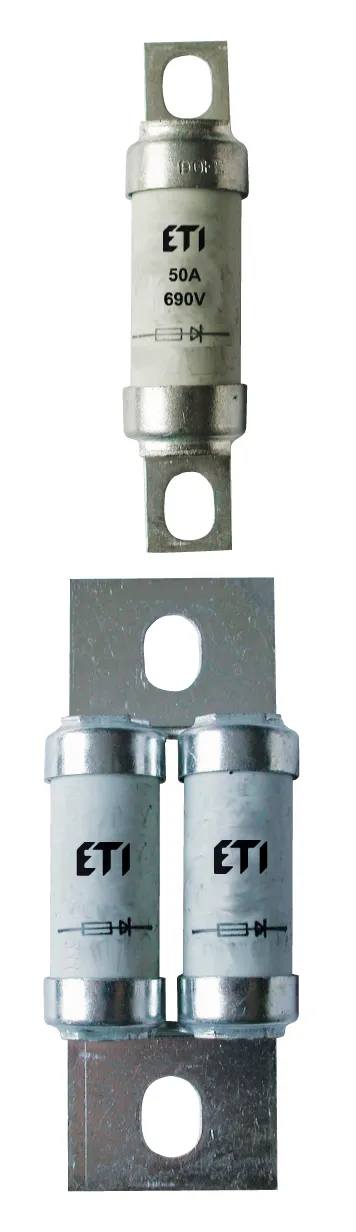

Fuse link BS38TUQ/83/315A/690V 004750939 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004750939
- Description:
- *BS38TUQ/83/315A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- BS
- Rated current (A):
- 315A
- Rated AC voltage (V):
- 690V
- Rated DC voltage (V):
- 350V
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 100kA
- Breaking capacity DC (kA):
- 100kA
- Application:
- For protection of semiconductor devices
- Power dissipation (W):
- 48W
- Operating joule integral (A2s):
- 75000
- Standards:
- IEC 60269-4,BS88 Part 4
Documents
Logistic Data
Product
- Net weight of the product
- 0.466 kg
- Customs tariff
- 85361090
- logis_net_width
- 38 mm
- logis_net_height
- 113 mm
- logis_net_depth
- 83 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895361749
- Basic packaging weight
- 2.25 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895416364
- Transport packaging weight
- 4.66 kg
- Pallet quantity
- 1720
ETIM Clasification
- Classification
- EC002704
- Class name
- Miniature fuse
- Rated current
- 315A
*BS38TUQ/83/315A/690V
