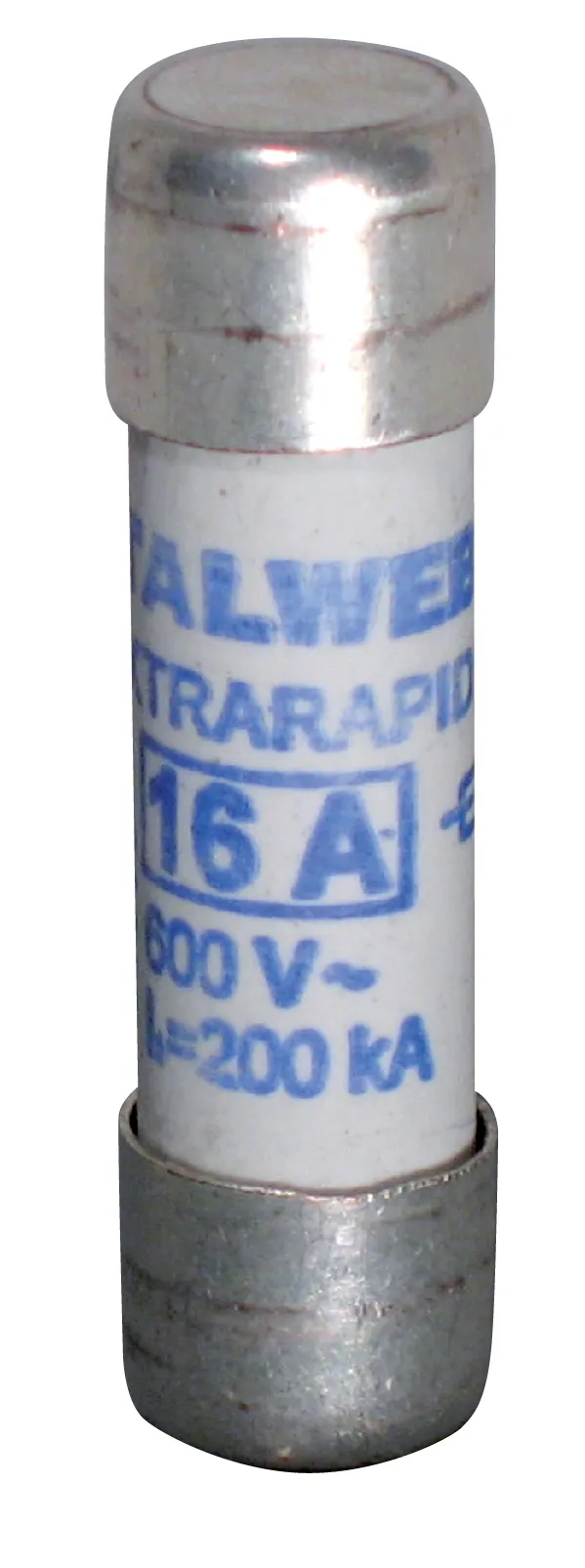

Fuse link CH10x38 aR 16A/600V 002625009
Specifications
- ETI Code:
- 002625009
- Description:
- CH10x38 aR 16A/600V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- CH
- Size:
- 10x38
- Rated current (A):
- 16A
- Rated AC voltage (V):
- 600V
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 200kA
- Breaking capacity DC (kA):
- 50kA
- Application:
- For protection of semiconductor devices
- Power dissipation (W):
- 3.5W
- Operating joule integral (A2s):
- 150
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895362494
- Net weight of the product
- 0.026 kg
- Customs tariff
- 85361050
- logis_net_width
- 10 mm
- logis_net_height
- 38 mm
- logis_net_depth
- 10 mm
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895356196
- Transport packaging weight
- 0.1 kg
- Pallet quantity
- 75000
ETIM Clasification
- Classification
- EC002704
- Class name
- Miniature fuse
- Rated current
- 16A
CH10x38 aR 16A/600V
