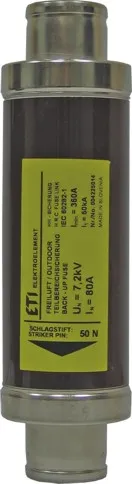

Fuse link VVC 7,2kV/125A 442 004225616 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004225616
- Description:
- * VVC 7,2kV/125A 442
- Class name:
- Fuse link
- Rated current (A):
- 125
- Type:
- VVC
- Rated AC voltage (V):
- 7200
- Indicator:
- striker 50N
- Breaking capacity AC (kA):
- 50
Documents
Logistic Data
Product
- Customs tariff
- 85351000
- logis_net_width
- 70 mm
- logis_net_height
- 508 mm
- logis_net_depth
- 70 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895296812
- Transport packaging weight
- 12.5 kg
- Pallet quantity
- 126
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 125A
