Fuse link VVC 12kV/20A 442 004235508 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004235508
- Description:
- * VVC 12kV/20A 442
- Class name:
- Fuse link
- Rated current (A):
- 20
- Type:
- VVC
- Rated AC voltage (V):
- 12000
- Indicator:
- striker 50N
- Breaking capacity AC (kA):
- 63
Documents
Logistic Data
Product
- Customs tariff
- 85351000
- logis_net_width
- 55 mm
- logis_net_height
- 508 mm
- logis_net_depth
- 55 mm
Transport packaging
- Transport packaging quantity
- 3
- EAN code for a transport packaging
- 3838895298441
- Transport packaging weight
- 7.45 kg
- Pallet quantity
- 144
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 20A

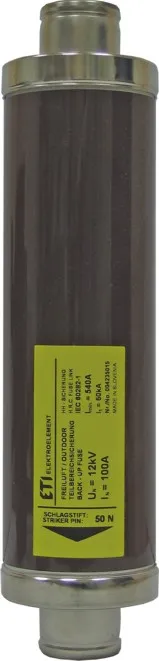

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
* VVC 12kV/20A 442
