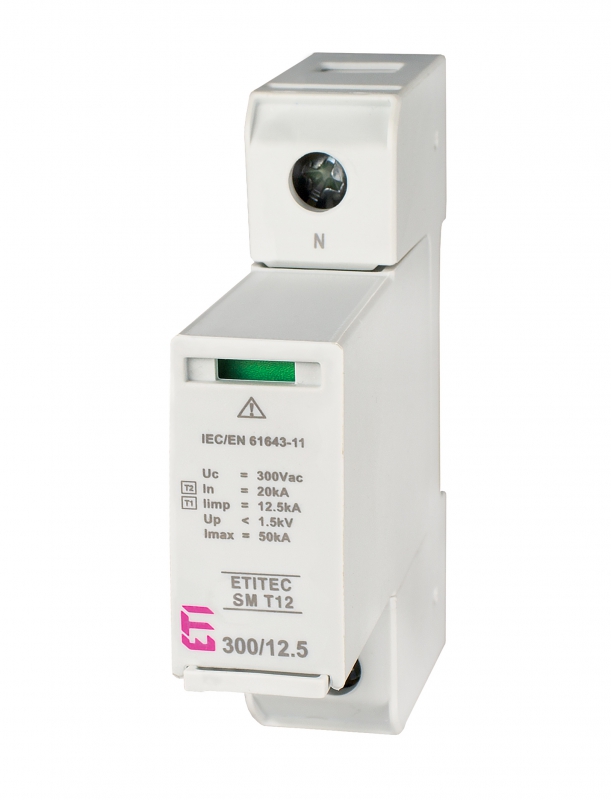

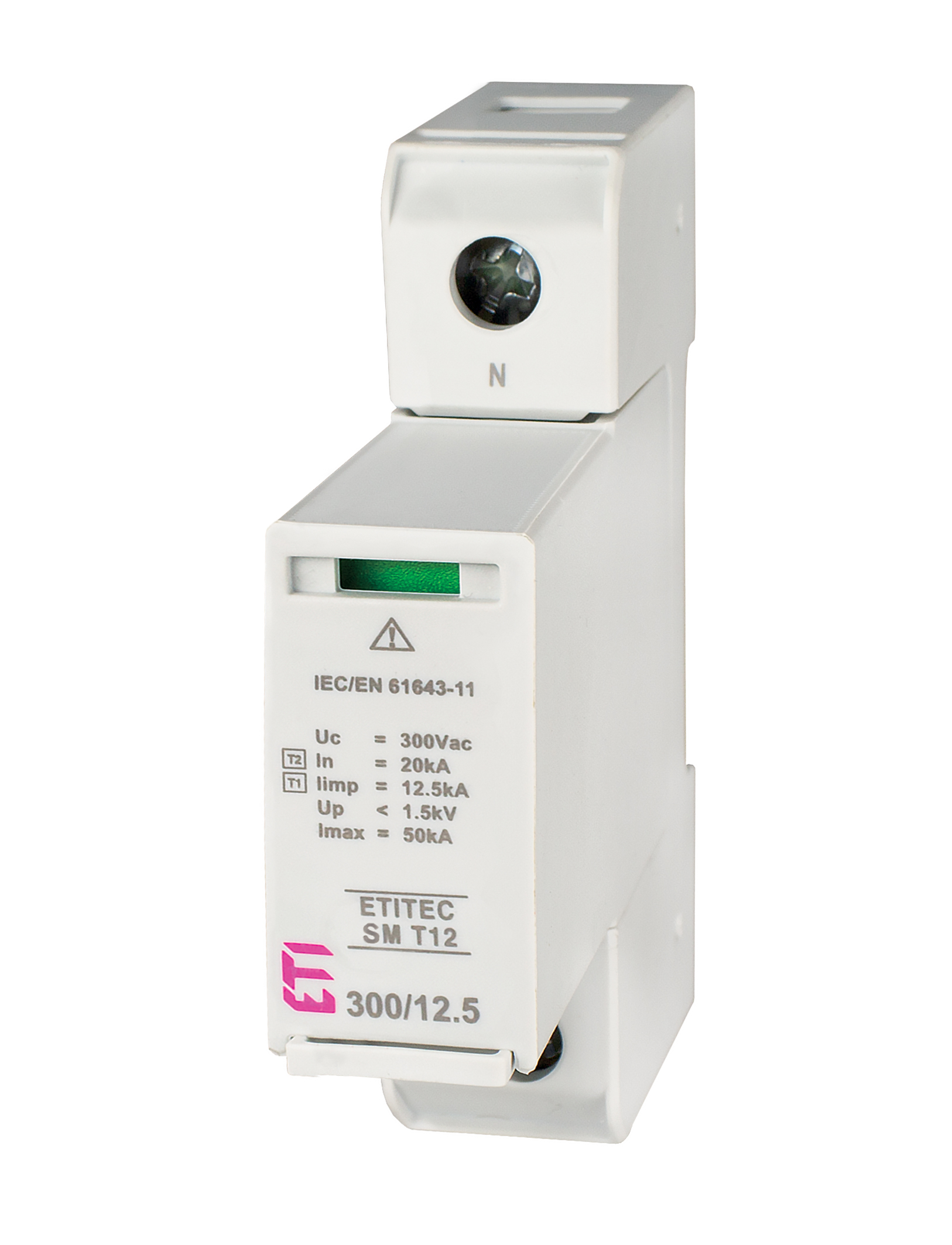

Surge arrester ETITEC SM T12 300/12,5 1+0 002440540
Specifications
- ETI Code:
- 002440540
- Description:
- ETITEC SM T12 300/12,5 1+0
- Class name:
- Surge arrester
- AC max continous operating voltage Uc:
- 300
- Type:
- T1, T2
- Iimp(10/350) impulse current (kA):
- 12,5
- In 8/20 (kA):
- 20
- Max. discharge current Imax, 8/20 (kA):
- 65
- Up - Voltage protection level (kV):
- 1,5
- Leakage current:
- NO
- Applied technology:
- MOV+GDT
- Remote signalisation:
- FALSE
- Network system:
- TN
- Number of modules:
- 1
- Built-in depth (mm):
- 86
- Function:
- SPD
- Catalogue Group:
- ETITEC SM
Documents
Logistic Data
Product
- Customs tariff
- 85363090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895841678
- Basic packaging weight
- 0.188 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895841685
- Transport packaging weight
- 2.337 kg
- Pallet quantity
- 2160
ETIM Clasification
- Classification
- EC001457
- Class name
- Combined arrester for power supply systems
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TN-S
- Yes
- System configuration TT
- No
- System configuration other
- No
- Number of poles
- 1
- Lightning impulse current (10/350 µs)
- 12,5
- Max. continuous voltage AC
- 300
- Nominal voltage AC
- 230
- Voltage protection level
- 1,5
- Specific energy (W/R)
- 39
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Remote signalling
- No
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- No
- Integrated backup fuse
- No
- Degree of protection (IP)
- IP20
