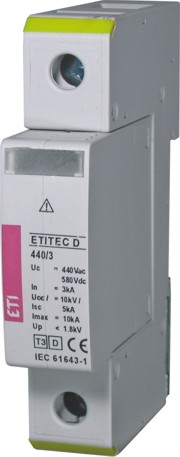

Surge arrester ETITEC D 440/3 002441620 Obsolete
This product is obsolete and has been replaced with ETITEC D T3 440/3 1+0.
Compare products
Specifications
- ETI Code:
- 002441620
- Description:
- * ETITEC D 440/3
- Class name:
- Surge arrester
- AC max continous operating voltage Uc:
- 440
- Type:
- T3
- In 8/20 (kA):
- 3
- Max. discharge current Imax, 8/20 (kA):
- 10
- Up - Voltage protection level (kV):
- 1,8
- Leakage current:
- YES
- Applied technology:
- MOV
- Remote signalisation:
- NO
- Network system:
- IT
- Function:
- SPD
- Catalogue Group:
- ETITEC D
Documents
Logistic Data
Product
- Customs tariff
- 85363090
- logis_net_width
- 18 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838757001165
- Basic packaging weight
- 0.135 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838757002179
- Transport packaging weight
- 1.62 kg
- Pallet quantity
- 5928
ETIM Clasification
- Classification
- EC000942
- Class name
- Surge protection device for terminal equipment
- Mounting method
- DIN rail (top hat rail) 35 mm
- Nominal voltage AC
- 400V
- Max. continuous voltage AC
- 440V
- Total discharge current (8/20) (L+N-PE)
- 3kA
- Voltage protection level
- 1,8kV
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Max. conductor cross section solid (solid, stranded)
- 35mm²
- Max. conductor cross section flexible (fine-strand)
- 25mm²
- Category type 3
- Yes
- With interference suppressor filter
- No
- Degree of protection (IP)
- IP20
* ETITEC D 440/3
