Surge arrester ETITEC SIG EMO 110V 002441711 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 002441711
- Description:
- * ETITEC SIG EMO 110V
- Class name:
- Surge arrester
- DC max continous operating voltage Uc:
- 170
- Type:
- T3
- In 8/20 (kA):
- 20
- Max. discharge current Imax, 8/20 (kA):
- 30
- Leakage current:
- YES
- Applied technology:
- MOV
- Remote signalisation:
- NO
- Number of modules:
- 1
- Function:
- SPD
- Catalogue Group:
- ETITEC SIG
Documents
Logistic Data
Product
- Customs tariff
- 85363090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895488736
- Basic packaging weight
- 0.123 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895488743
- Transport packaging weight
- 1.476 kg
- Pallet quantity
- 6504
ETIM Clasification
- Classification
- EC001466
- Class name
- Lightning current arrester for data networks/MCR-technology
- Nominal voltage DC
- 110V
- Max. continuous voltage DC
- 170V
- Nominal discharge surge current (8/20)
- 20kA
- Nominal load current
- 1A
- Voltage protection level
- 450V
- Limiting frequency
- 10MHz
- Signalling at the device
- Optical
- Mounting method
- DIN rail (top hat rail) 35 mm
- Connection 1
- Clamp
- With remote signalling contact
- No
- Explosion-tested version
- No

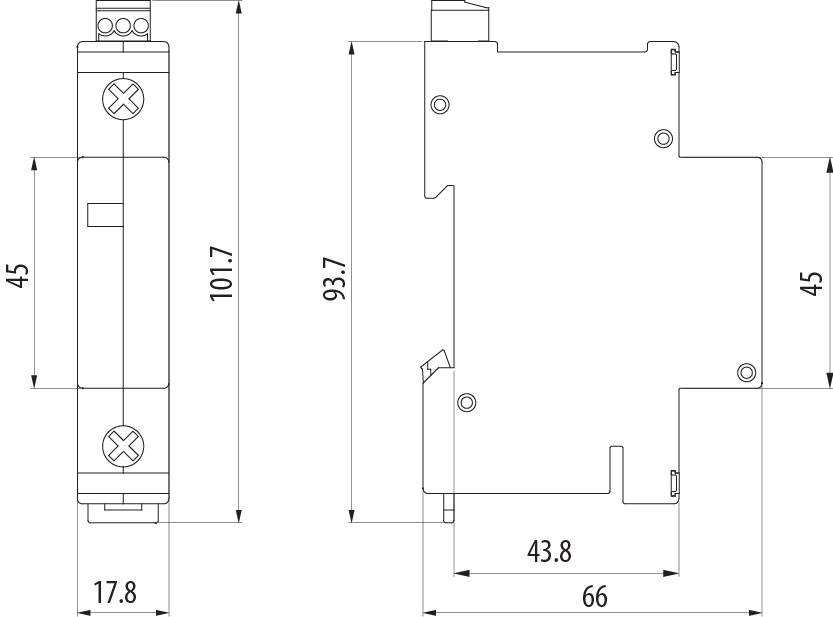

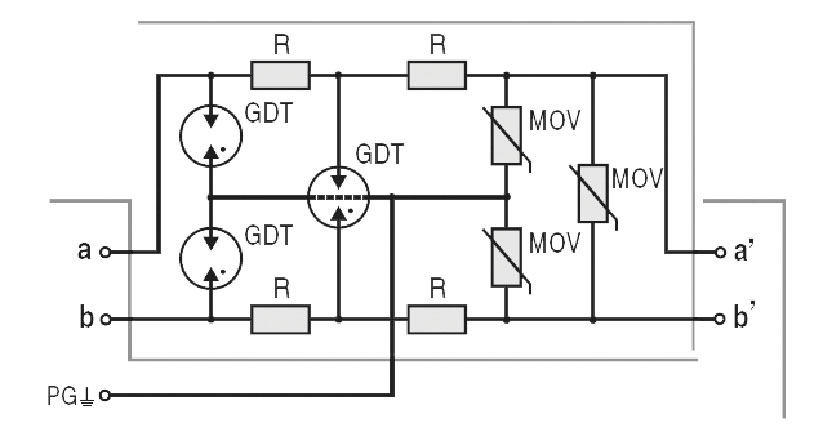

Images & Diagrams
