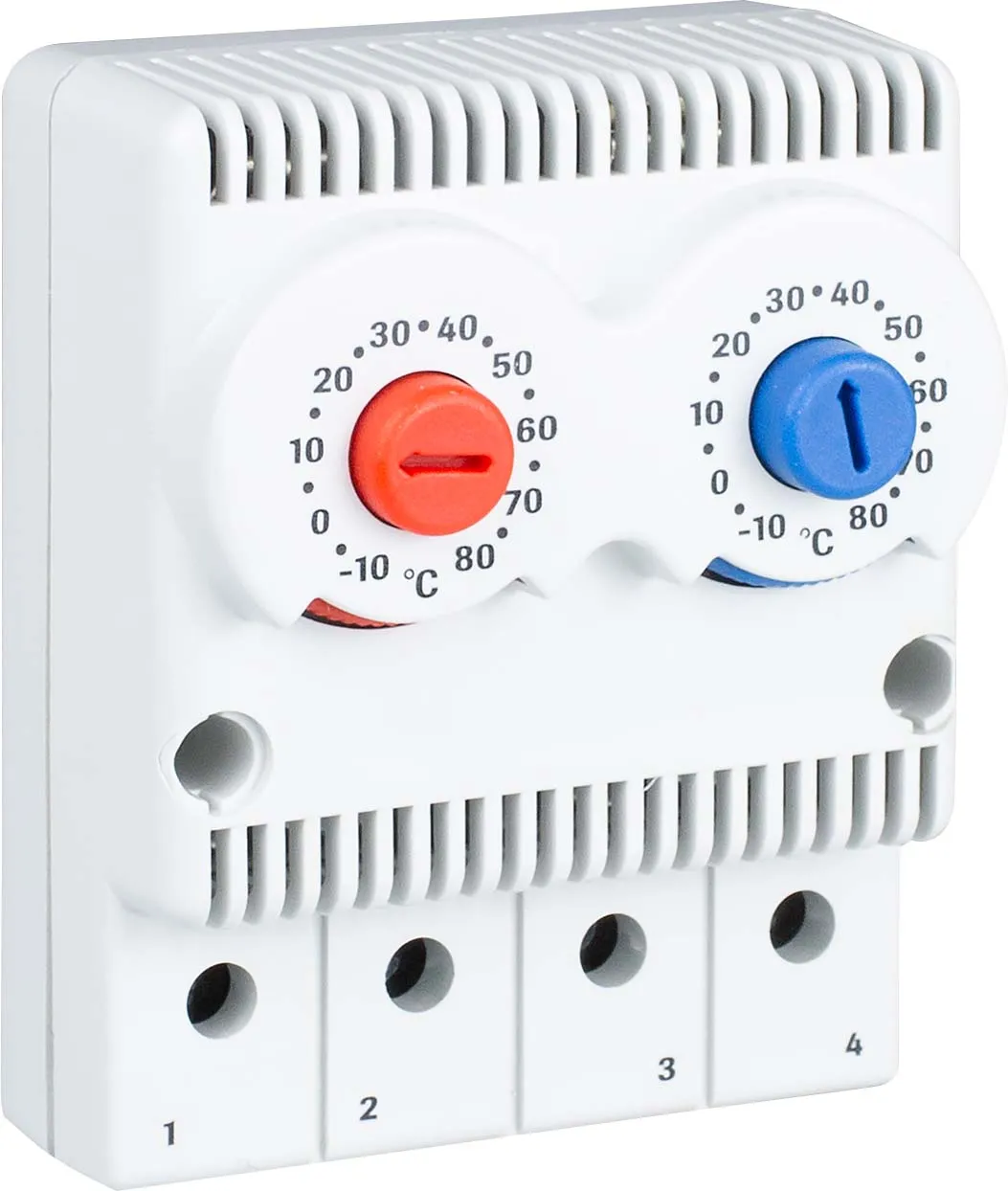

Thermostat EF-TER2-NCNO 001344002
Specifications
- ETI Code:
- 001344002
- Description:
- EF-TER2-NCNO
- Class name:
- Thermostat
- Voltage type:
- Other
- Number of NO contacts:
- 1
- Number of NC contacts:
- 1
- Mounting type:
- TH 35
- Rated voltage (V):
- 110-250V AC / 60V DC
- Rated current (A):
- 10
- Max contact current (A):
- 15/15
- Setting range (°C):
- -10 ÷ 80
- Accuracy (K):
- ±3
- Rated hysteresis (K):
- 7
- IP rating:
- IP20
- Connection type:
- Terminal block
- Clamping range (mm²):
- 0,75-2,5
- Color:
- RAL 7035
- Body material:
- PA66 UL94 V-0
- Width (mm):
- 58,0
- Height (mm):
- 72,5
- Depth (mm):
- 44,5
- Working temperature (°C):
- -10 ÷ 80
- Storage temperature (°C):
- -40 ÷ 90
- Approvals:
- CE
Documents
Logistic Data
Product
- Customs tariff
- 90321080
- logis_net_width
- 58 mm
- logis_net_height
- 73 mm
- logis_net_depth
- 44 mm
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838400103574
- Transport packaging weight
- 1.4 kg
- Pallet quantity
- 1818
ETIM Clasification
- Classification
- EC000320
- Class name
- Ventilator (switchgear cabinet)
- Operating voltage AC 50 Hz
- 110…250V
- Voltage type
- AC
- Degree of protection (IP)
- IP20
- Colour
- Other
- Width
- 58mm
- Height
- 72,5mm
- Depth
- 44,5mm
EF-TER2-NCNO
