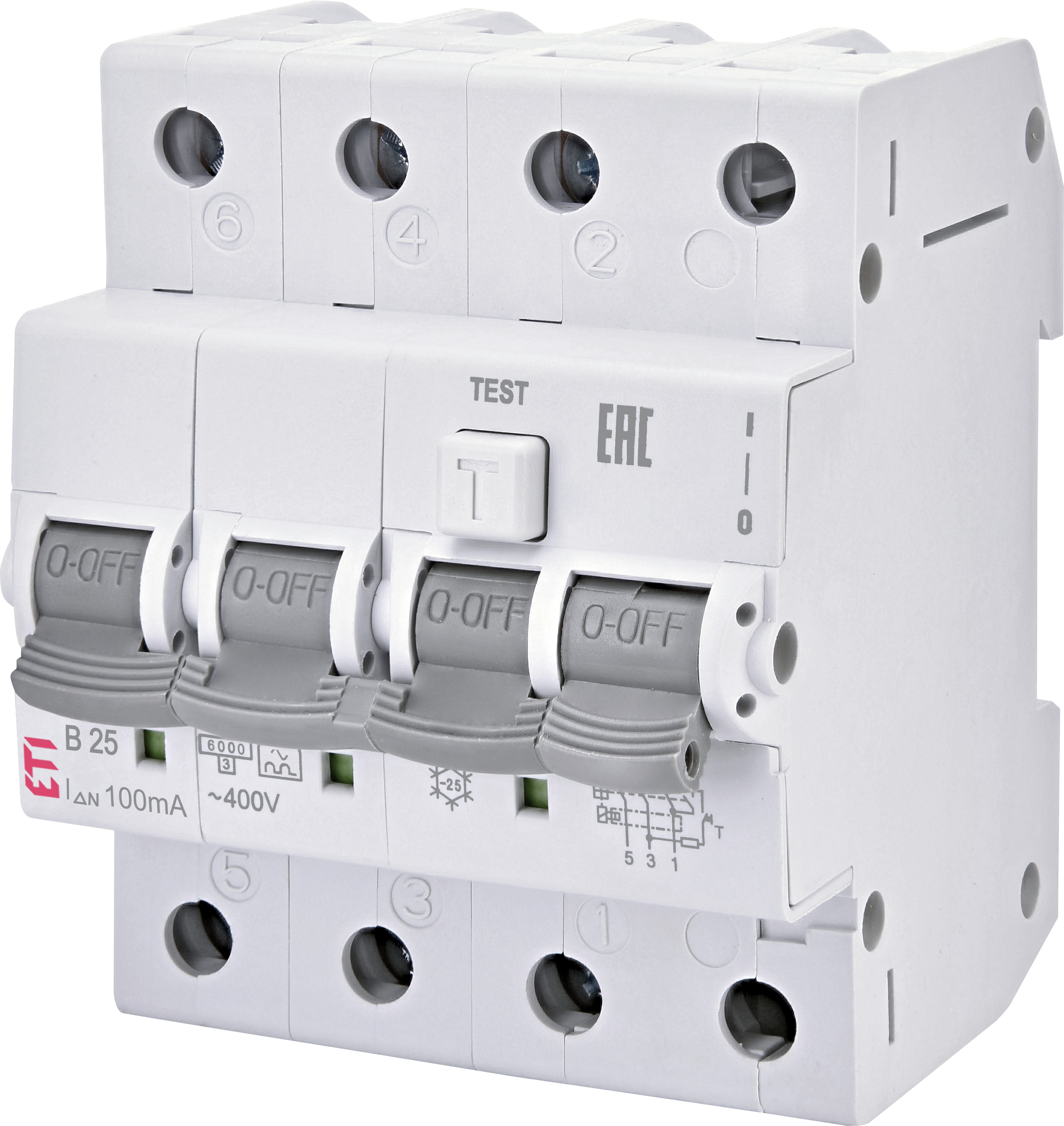

RCBO KZS-4M 3p A B25/0.1 002173006
Specifications
- ETI Code:
- 002173006
- Description:
- KZS-4M 3p A B25/0.1
- Class name:
- RCBO
- Rated residual current (A):
- 0.1
- Current type:
- A
- Rated current (A):
- 25
- Tripping characteristic:
- B
- Type:
- A
- Number of poles:
- 3
- Short circuit capacity (kA):
- 10
- Rated voltage (V):
- 415
- Rated Frequency (Hz):
- 50/60 Hz
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61009
Documents
Logistic Data
Product
- Customs tariff
- 85362010
- logis_net_width
- 70 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895794530
- Basic packaging weight
- 0.51 kg
Transport packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838895794547
- Transport packaging weight
- 14.27 kg
- Pallet quantity
- 1404
