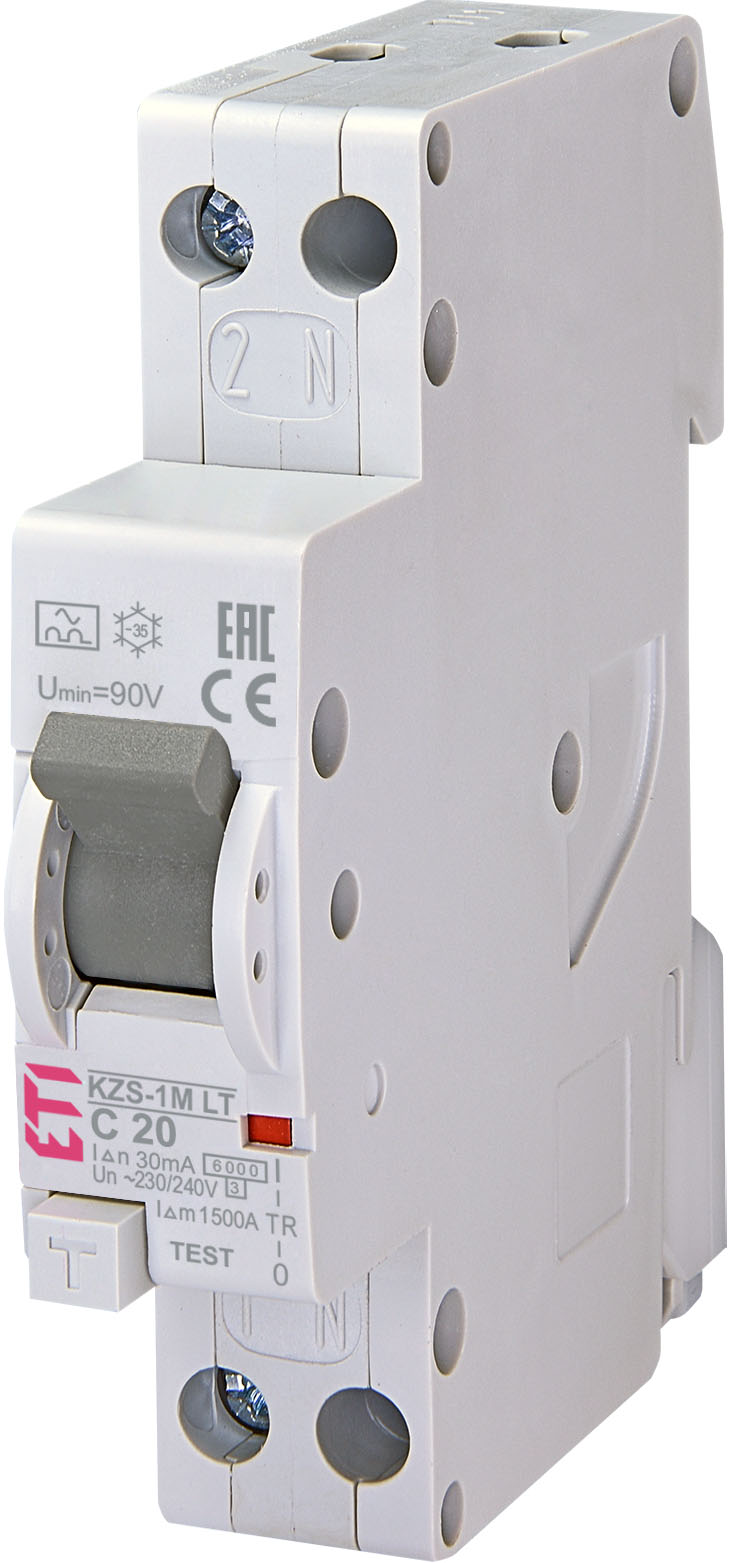

RCBO KZS-1M-LT 1p+N A C20/0.03 6kA 002175305 Obsolete
This product is obsolete and has been replaced with KZS-1M-UNI 1p+N A C20/0.03.
Compare products
Specifications
- ETI Code:
- 002175305
- Description:
- *KZS-1M-LT 1p+N A C20/0.03 6kA
- Class name:
- RCBO
- Rated residual current (A):
- 0.03
- Current type:
- A
- Rated current (A):
- 20
- Tripping characteristic:
- C
- Type:
- A
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 6
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50 Hz
- Rated cross section:
- 1-10
- Standards:
- IEC 61009
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895819455
- Net weight of the product
- 0.123 kg
- Customs tariff
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895819462
- Basic packaging weight
- 1.546 kg
Transport packaging
- Transport packaging quantity
- 72
- EAN code for a transport packaging
- 3838895819479
- Transport packaging weight
- 9.626 kg
- Pallet quantity
- 3744
