Fuse link DIII gF 20A/1200V 002313625

Specifications

ETI Code:
002313625
Description:
DIII gF 20A/1200V
Class name:
Fuse link
efuse:
1
Type:
D
Size:
DIII
Rated current (A):
20
Rated AC voltage (V):
1200
Characteristics:
gF
Breaking capacity AC (kA):
10
Dimensions:
E33
Indicator:
Top fuse status indicator
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838400029348
Net weight of the product
0.09  kg
Customs tariff
85351000
logis_net_width
27  mm
logis_net_height
27  mm
logis_net_depth
70  mm

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895422303
Basic packaging weight
0.443  kg

Transport packaging

Transport packaging quantity
200
EAN code for a transport packaging
3838895422310
Transport packaging weight
18  kg
Pallet quantity
10400
Classification
EC000099
Class name
D-system fuse link
Construction size
DIII
Rated current
20A
Rated voltage
1200V
Colour code
Blue
Utilization category
Other
Release characteristic
Fast (F)
ETIM Classification – Version 7.0

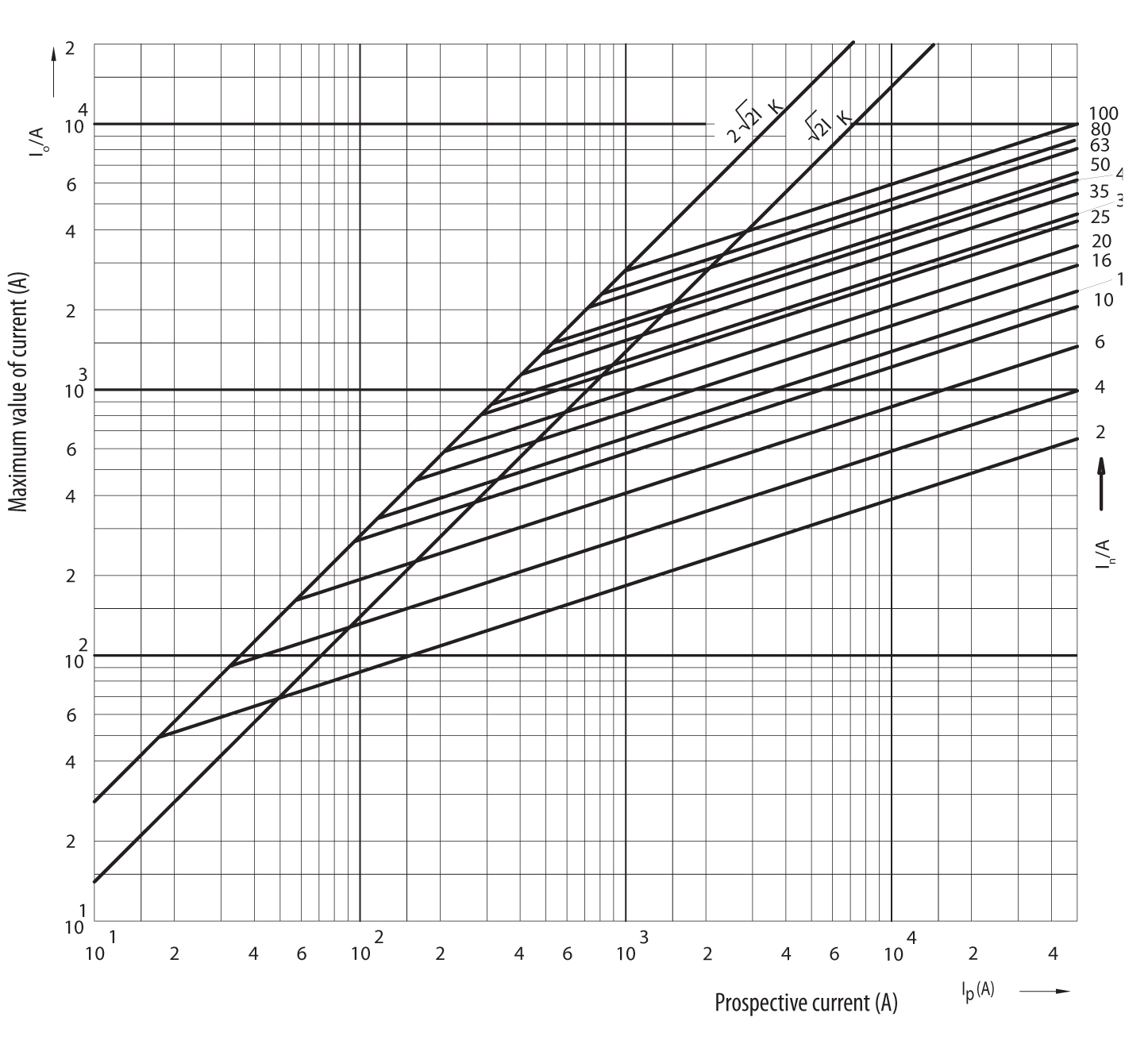

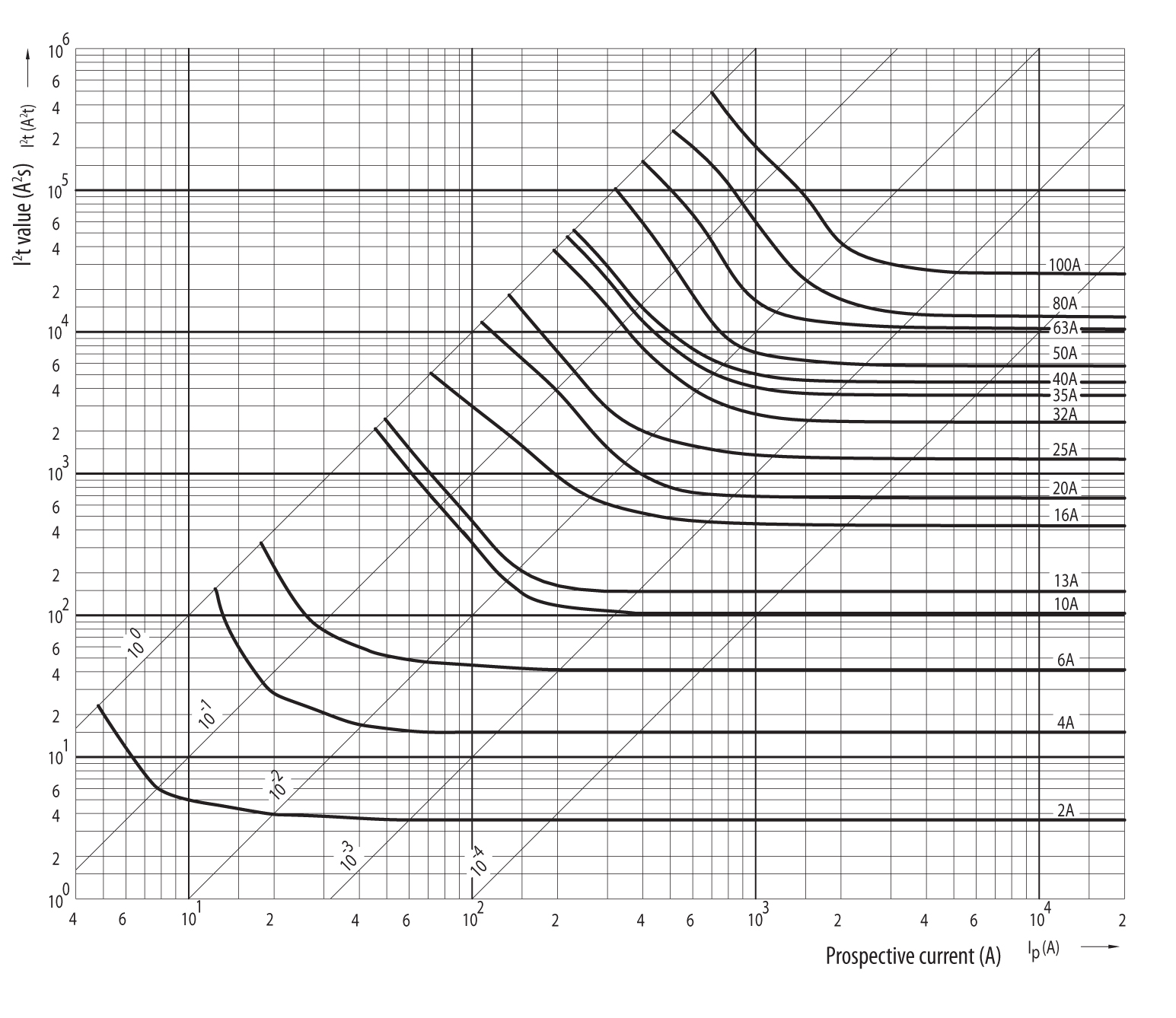

Images & Diagrams
