Fuse link DIV DZ 80A/500V 002314101

Specifications

ETI Code:
002314101
Description:
DIV DZ 80A/500V
Class name:
Fuse link
efuse:
1
Type:
D
Size:
DIV
Rated current (A):
80
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
DZ
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
R1 1/4
Indicator:
Top fuse status indicator
Power dissipation (W):
12,7
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838400029379
Net weight of the product
125  g
Customs tariff
85361090
logis_net_width
33  mm
logis_net_height
33  mm
logis_net_depth
56  mm

Level 1 Packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895291220
Basic packaging weight
0.4  kg

Level 2 Packaging

Transport packaging quantity
48
EAN code for a transport packaging
3838895291237
Transport packaging weight
6.8  kg
Pallet quantity
6480
Classification
EC000099
Class name
D-system fuse link
Construction size
DIV
Rated current
80A
Rated voltage
500V
Colour code
Silver
Utilization category
Other
Release characteristic
Fast (F)
ETIM Classification – Version 7.0

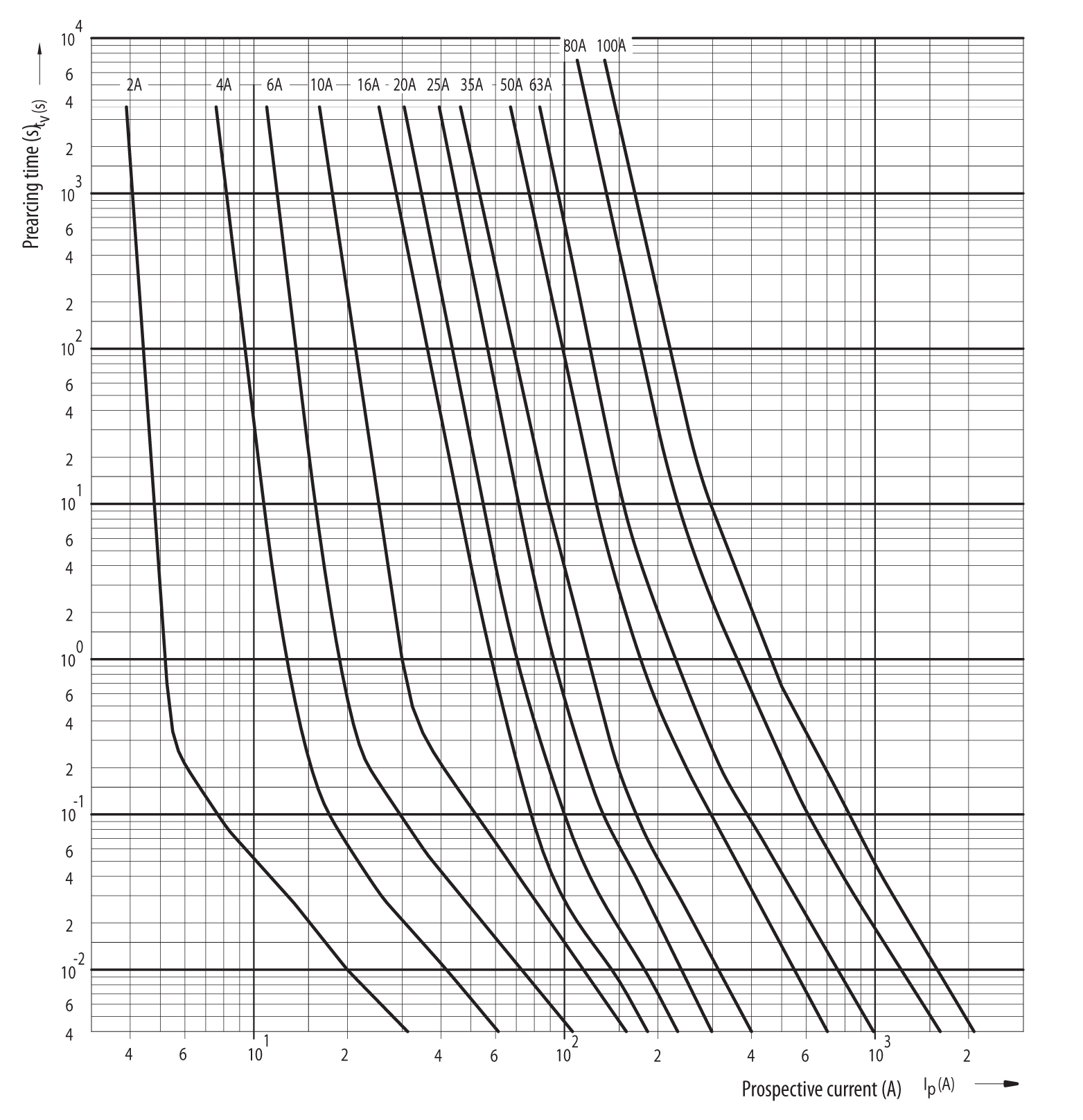

Images & Diagrams
