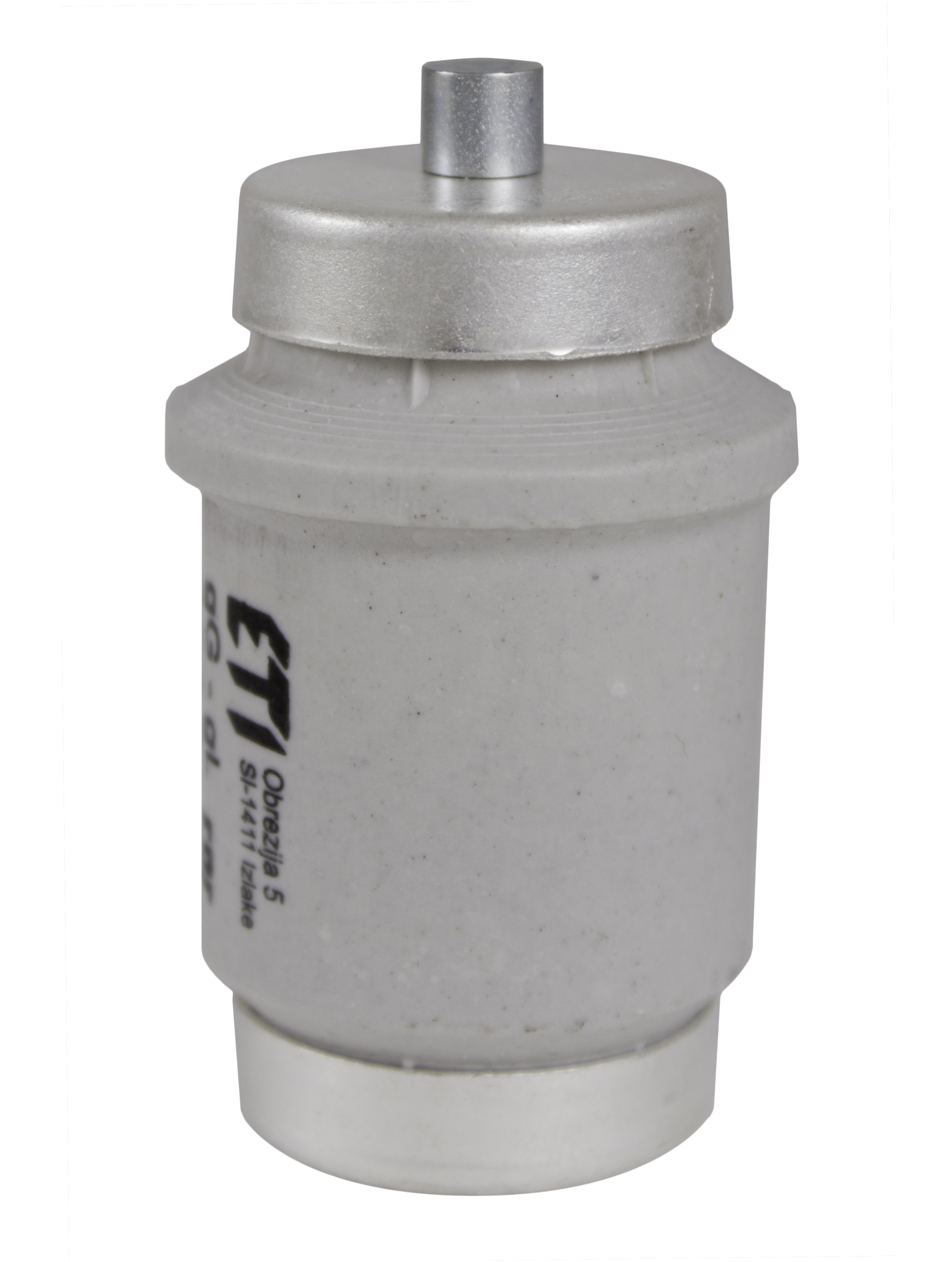

Fuse link DIV gG 100A/500V 002314402

Specifications

ETI Code:
002314402
Description:
DIV gG 100A/500V
Class name:
Fuse link
efuse:
1
Type:
D
Size:
DIV
Rated current (A):
100
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8

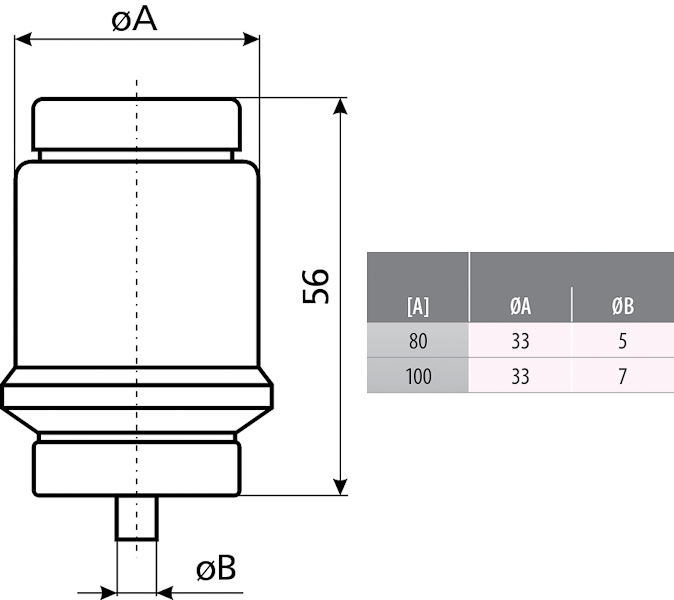

Dimensions:
R1 1/4
Indicator:
Top fuse status indicator
Power dissipation (W):
8,8
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838400029409
Net weight of the product
125  g
Customs tariff
85361090
logis_net_width
33  mm
logis_net_height
33  mm
logis_net_depth
56  mm

Level 1 Packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895291206
Basic packaging weight
0.4  kg

Level 2 Packaging

Transport packaging quantity
48
EAN code for a transport packaging
3838895291213
Transport packaging weight
6.8  kg
Pallet quantity
6480
Classification
EC000099
Class name
D-system fuse link
Construction size
DIV
Rated current
100A
Rated voltage
500V
Colour code
Red
Utilization category
gL/gG (cable protection/equipment protection)
Release characteristic
Time-lag (T)
ETIM Classification – Version 7.0
