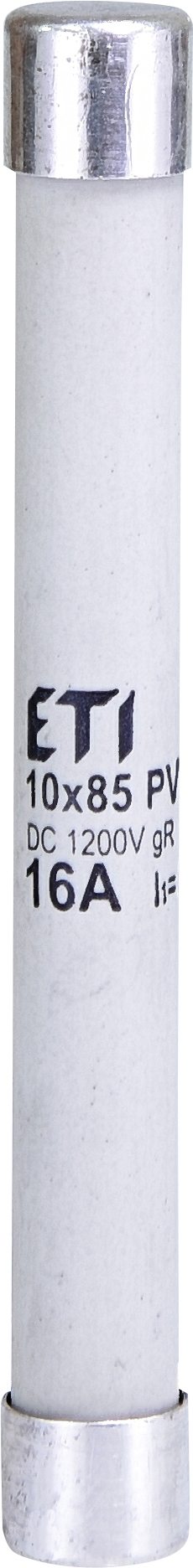

Fuse link CH10x85 gR 16A/1200V DC 002625226

Specifications

ETI Code:
002625226
Description:
CH10x85 gR 16A/1200V DC
Class name:
Fuse link
Type:
CH
Size:
CH10
Rated current (A):
16
Rated DC voltage (V):
1200
Characteristics:
gR
Breaking capacity DC (kA):
30
Application:
For protection of semiconductor devices

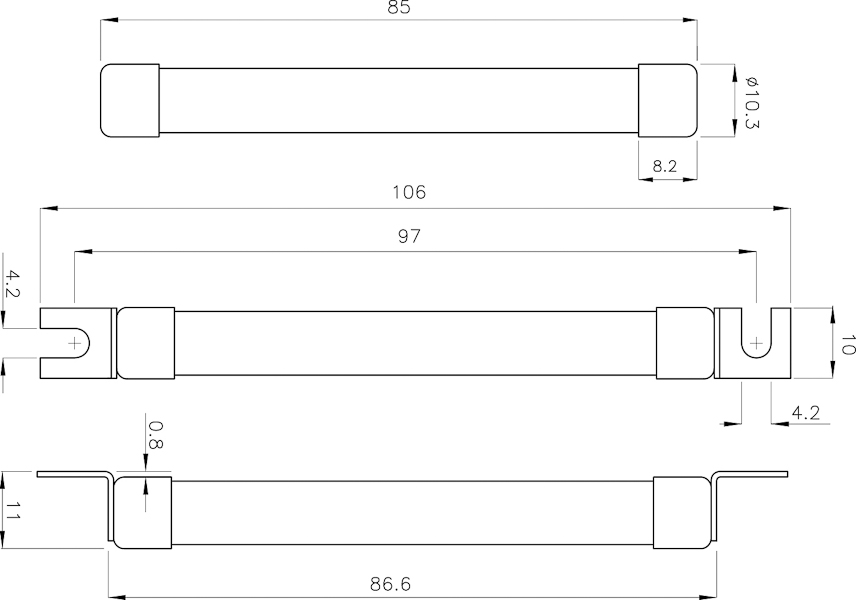

Dimensions:
10x85
Power dissipation (0,7xIn) (W):
1,57
Power dissipation (W):
3,65
Prearcing joule integral (A2s):
141
Operating joule integral (A2s):
177
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895611684
Net weight of the product
0.162 kg
Customs tariff
85351000

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895611684
Basic packaging weight
0.162 kg
Basic packaging volume
0.107

Transport packaging

Transport packaging quantity
210
EAN code for a transport packaging
3838895611691
Transport packaging weight
3.7 kg
Transport packaging volume
3.386
Pallet quantity
35700
Pallet volume
575.62
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Construction size
CH10
Nominal current
16A
Nominal rated current
16
Rated voltage
Other
Rated voltage at DC
1200
Size
Other
Utilization category
Other
ETIM Classification – Version 7.0

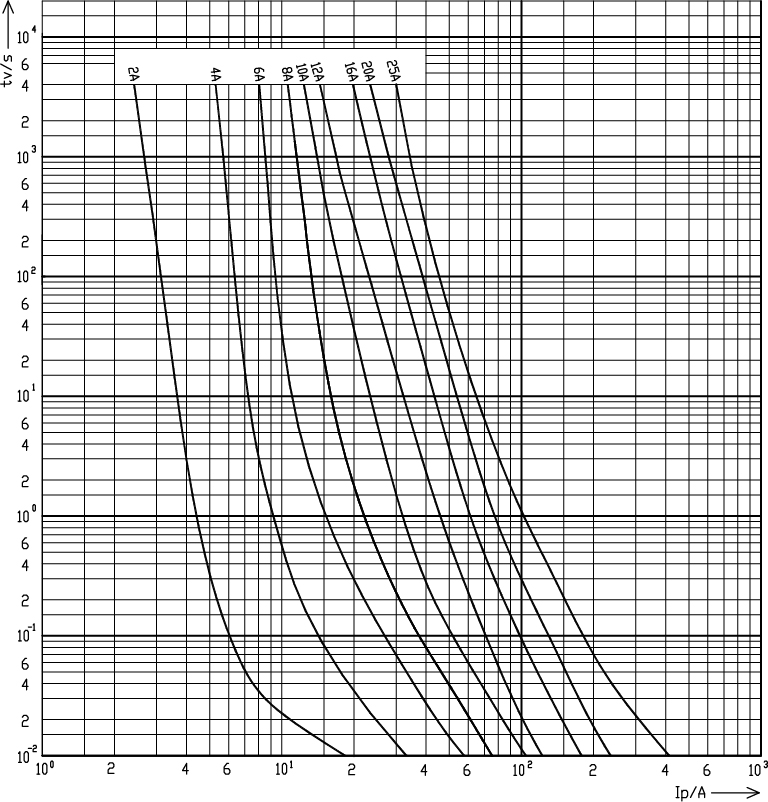

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002625226Fuse link, CH10x85 gR 16A/1200V DCUltra QuickSystem CgR CharacteristicgR CharacteristicCH 10x85Standard contactsFuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKCH10X85 GR 16A/1Rated current 16AType CHSize CH10Product group Special purpose fusesProduct subgroup PVCharacteristics gRRated DC voltage 1200VDimensions 10x85Breaking capacity DC 30kAPower dissipation 3,65WCatalogue Group Special purpose fusesCatalogue subgroup PV FuseStandards IEC 60269-4Power dissipation (0,7xIn) 1,57WOperating joule integral 177A2sL/R 2msPrearcing joule integral 141A2sApplication For protection of semiconductor devicesDesigned for Protection of PV installationsFuse link CH10x85 CH CH10 16A 1200V gR
