Fuse link CH22x58 gG 80A/500V 002640023 Obsolete
This product is obsolete and has been replaced with CH22x58 gG 80A/690V.
Compare products
Specifications
- ETI Code:
- 002640023
- Description:
- *CH22x58 gG 80A/500V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH
- Size:
- CH22
- Rated current (A):
- 80
- Rated AC voltage (V):
- 500
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection
- Dimensions:
- 22x58
- Power dissipation (W):
- 8,3
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895581482
- Net weight of the product
- 52 g
- Customs tariff
- 85361090
- logis_net_width
- 22 mm
- logis_net_height
- 58 mm
- logis_net_depth
- 22 mm
Level 1 Packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895139041
- Basic packaging weight
- 0.52 kg
Level 2 Packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895165989
- Transport packaging weight
- 26.3 kg
- Pallet quantity
- 26000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Size
- 22x58 mm
- Utilization category
- Other
- Nominal current
- 80A
- Breaking capacity
- 120kA

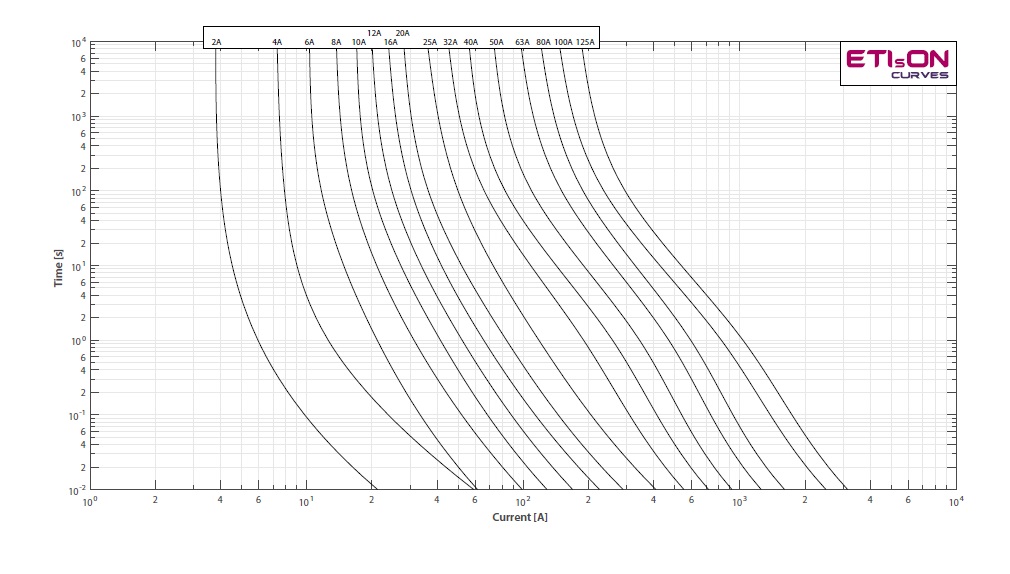

Characteristic
