Fuse link CH22x58 aM 32A/690V 002641015

Specifications

ETI Code:
002641015
Description:
CH22x58 aM 32A/690V
Class name:
Fuse link
Type:
CH
Size:
CH22
Rated current (A):
32
Rated AC voltage (V):
690
Characteristics:
aM
Breaking capacity AC (kA):
80
Application:
For relays, contactors and motors protection in case of short-circuit
Dimensions:
22x58
Power dissipation (W):
2,6
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

EAN code for a single product
3838895169888
Net weight of the product
0.52 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895169888
Basic packaging weight
0.52 kg
Basic packaging volume
0.33

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895169895
Transport packaging weight
26.3 kg
Transport packaging volume
16.5
Pallet quantity
26000
Pallet volume
858
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
80kA
Nominal current
32A
Size
22x58 mm
ETIM Classification – Version 7.0

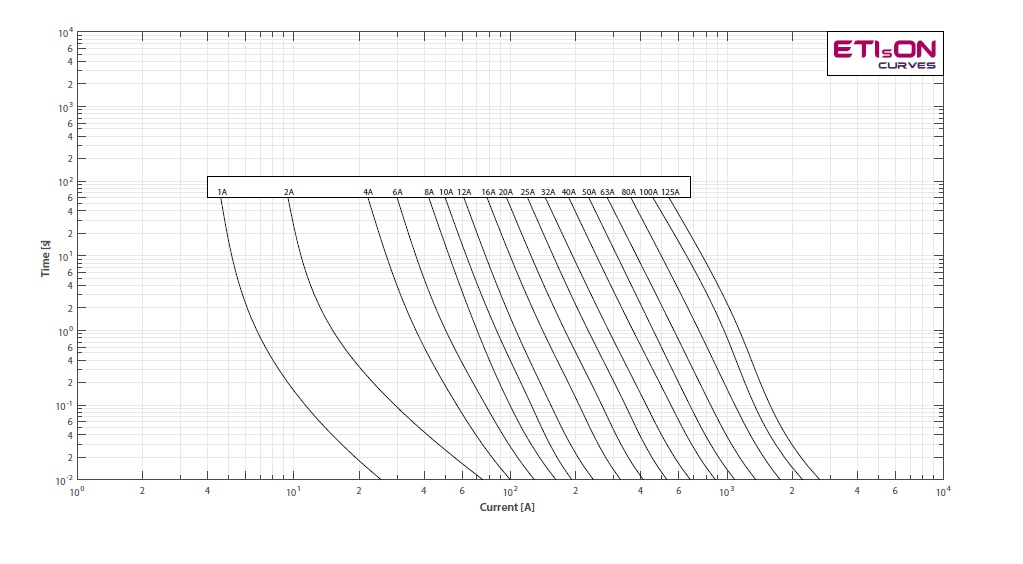

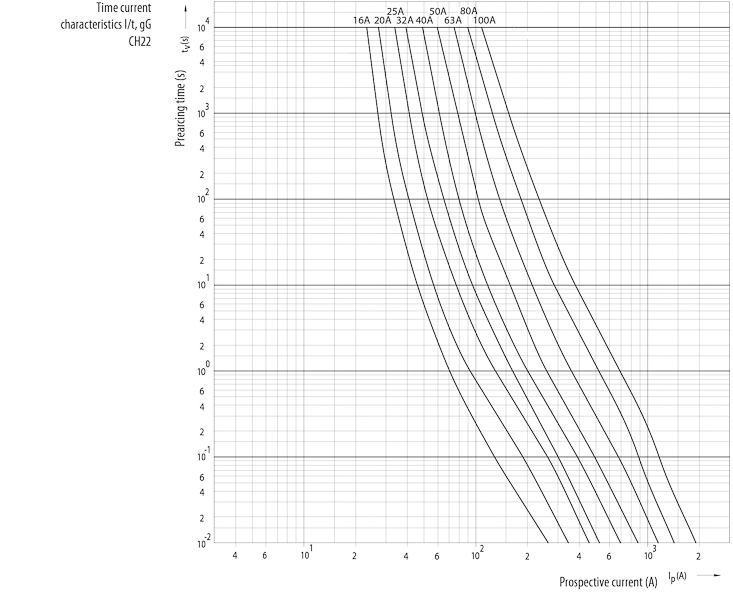

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002641015Fuse link, CH22x58 aM 32A/690VCCylindrical fuse-linksCHCH22aMaMFuse links D, D0, CC fuse linksCH22X58 AM 32A/6Rated current 32AType CHSize CH22Product group C low Voltage cylindrical fusesCharacteristics aMRated AC voltage 690VDimensions 22x58Breaking capacity AC 80kAPower dissipation 2,6WCatalogue Group C low Voltage cylindrical fusesStandards IEC 60269-1, IEC 60269-2Application For relays, contactors and motors protection in case of short-circuitFuse link CH22x58 CH CH22 32A 690V aM
